BXRH-27 Series

Manufacturer: BRIDGELUX

Catalog

LED COB V6 HD WARM WHT SQU 2700K

Part	CCT (K)	CCT (K)	Lens Type	Type	Size / Dimension [y]	Size / Dimension [x]	Color	Luminous Flux @ Current/Temperature	Temperature - Test	Height	Viewing Angle	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Configuration	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]

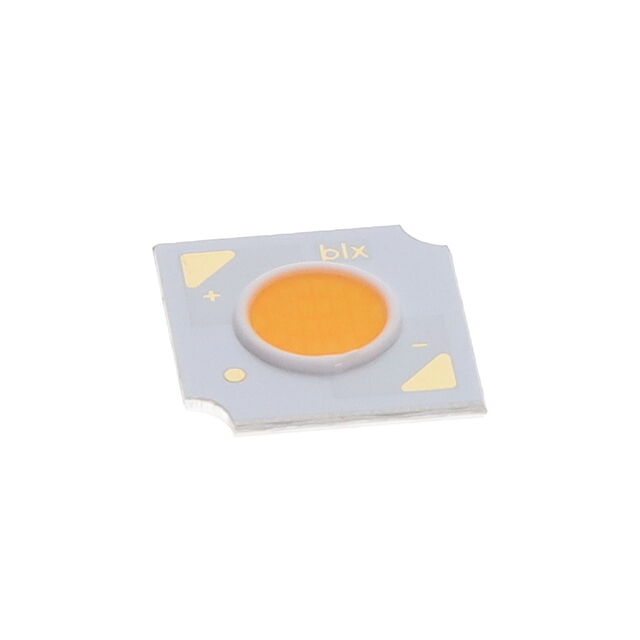

BRIDGELUX BXRH-27H1000-G-83	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	13.5 mm	13.5 mm	Warm White	1237 lm	25 °C	1.63 mm	120 °	97 lm/W	97	6.6 mm	Square	1.2 A	18.3 V
BRIDGELUX BXRH-27E3000-D-73	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	19 mm	19 mm	Warm White	2857 lm	85 °C	1.63 mm	120 °	115 lm/W	80	9.2 mm	Square	960 mA	35.4 V
BRIDGELUX BXRH-27H3000-D-73	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	19 mm	19 mm	Warm White	2105 lm	85 °C	1.63 mm	120 °	85 lm/W	97	9.2 mm	Square	960 mA	35.4 V
BRIDGELUX BXRH-27G1000-B-83	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	13.5 mm	13.5 mm	Warm White	1395 lm	25 °C	1.63 mm	120 °	109 lm/W	90	6.6 mm	Square	600 mA	36.6 V	350 mA
BRIDGELUX BXRH-27E1000-B-83	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	13.5 mm	13.5 mm	Warm White	1691 lm	25 °C	1.63 mm	120 °	132 lm/W	80	6.6 mm	Square	600 mA	36.6 V	350 mA
BRIDGELUX BXRH-27G1000-C-23	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	13.35 mm	13.35 mm	Warm White	1084 lm	25 °C		112 °	79 lm/W	90	6.6 mm	Square	1.05 A	18.3 V	750 mA	1.7 mm
BRIDGELUX BXRH-27G3000-D-73	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	19 mm	19 mm	Warm White	2375 lm	85 °C	1.63 mm	120 °	96 lm/W	90	9.2 mm	Square	960 mA	35.4 V
BRIDGELUX BXRH-27H0600-A-73	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	12.5 mm	12.5 mm	Warm White	471 lm	85 °C	1.63 mm	120 °	76 lm/W	97	5.2 mm	Square	240 mA	35.4 V	175 mA
BRIDGELUX BXRH-27S1001-B-73	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	13.5 mm	13.5 mm	Warm White	1147 lm	25 °C	1.63 mm	120 °	90 lm/W	98	6.6 mm	Square	480 mA	36.4 V	350 mA
BRIDGELUX BXRH-27H0600-B-83	2700 K	3-Step MacAdam Ellipse	Flat	Chip On Board (COB)	12.5 mm	12.5 mm	Warm White	597 lm	25 °C	1.63 mm	120 °	93 lm/W	97	4.8 mm	Square	600 mA	18.3 V	350 mA
