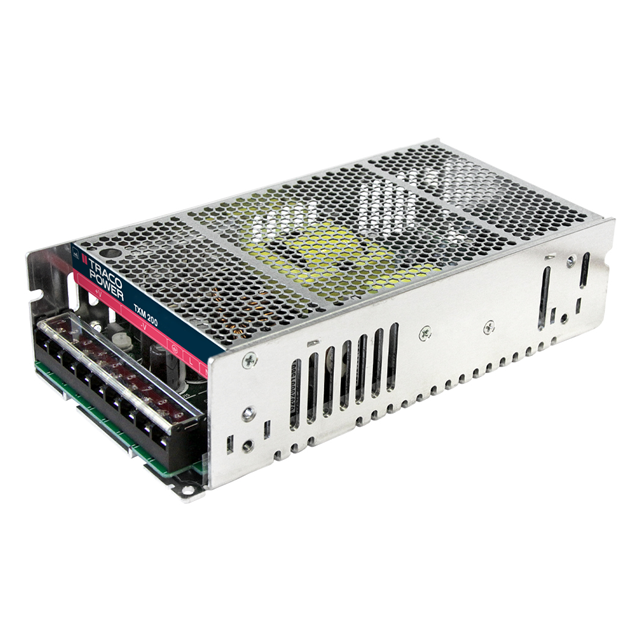

TXM 200 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 48V 202W
| Part | Minimum Load Required | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Applications | Features | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Efficiency | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 90 VAC 120 VDC | 264 VAC 370 VDC | 3000 V | ITE (Commercial) | Adjustable Output PFC Universal Input | 1 | Enclosed | 3.9 " | 50.3 mm | 99 mm | 7.83 in | 1.98 in | 199 mm | 48 V | 4.2 A | -20 °C | 65 °C | Chassis Mount | 88.5 % | 202 W | CB CE cURus |
