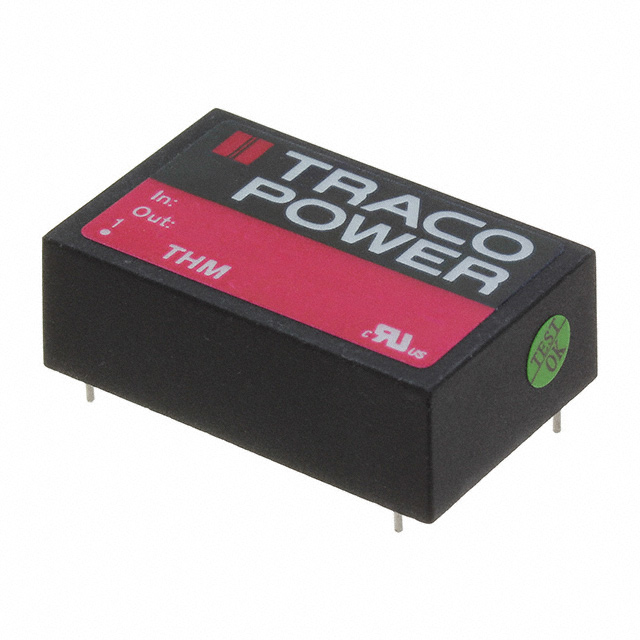

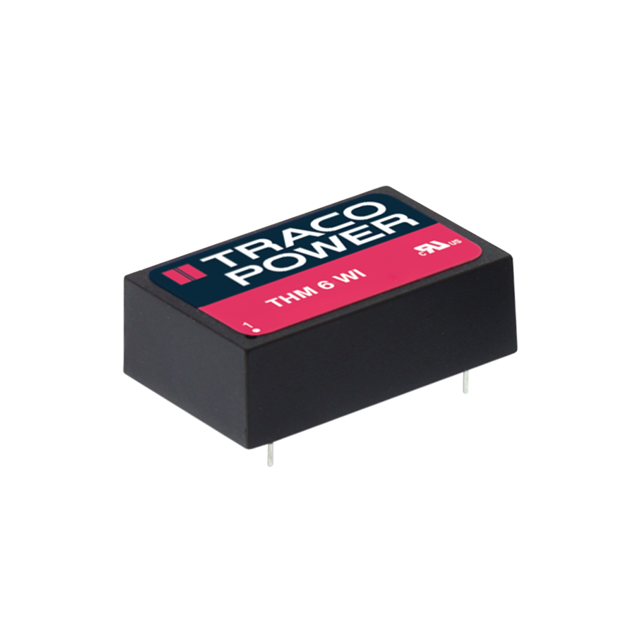

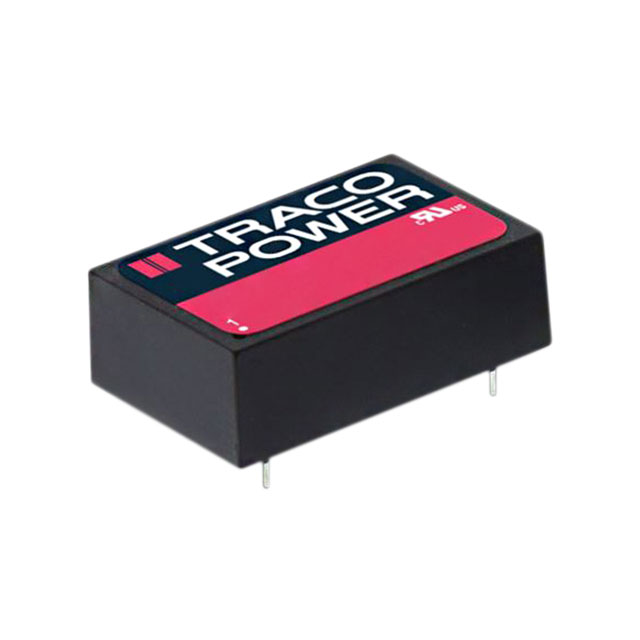

THM 6 Series

Catalog

DC DC CONVERTER 12V 6W

Part	Applications	Voltage - Isolation	Power (Watts)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Min]
Traco Power THM 6-2412WI	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	95 °C	89 %	Isolated Module	500 mA	Through Hole	9 V	36 V	12 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-0512WI	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	95 °C	86 %	Isolated Module	500 mA	Through Hole	4.5 V	9 V	12 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-2415WI	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	95 °C	88.5 %	Isolated Module	250 mA	Through Hole	9 V	36 V	24 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-0513	Medical	5000 V	6 W	24-DIP Module 5 Leads	-40 C	88 °C	87.5 %	Isolated Module	400 mA	Through Hole	4.5 V	9 V	15 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-0522	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	88 °C	86.5 %	Isolated Module		Through Hole	4.5 V	9 V	12 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	-12 V	250 mA
Traco Power THM 6-2413WI	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	95 °C	89 %	Isolated Module	400 mA	Through Hole	9 V	36 V	15 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-2421	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	88 °C	85 %	Isolated Module	600 mA	Through Hole	18 V	36 V	5 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	-5 V		600 mA
Traco Power THM 6-0512	Medical	5000 V	6 W	24-DIP Module 5 Leads	-40 C	88 °C	86 %	Isolated Module	500 mA	Through Hole	4.5 V	9 V	12 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-0515WI	Medical	5000 V	6 W	24-DIP Module 6 Leads	-40 C	95 °C	86.5 %	Isolated Module	250 mA	Through Hole	4.5 V	9 V	24 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
Traco Power THM 6-0511	Medical	5000 V	6 W	24-DIP Module 5 Leads	-40 C	88 °C	86 %	Isolated Module	1.2 A	Through Hole	4.5 V	9 V	5 V	OCP OVP SCP	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1
