FX10A Series

Catalog

CONN HDR 96POS SMD GOLD

...

Part	Number of Rows [custom]	Mounting Type	Pitch	Pitch	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions [custom]

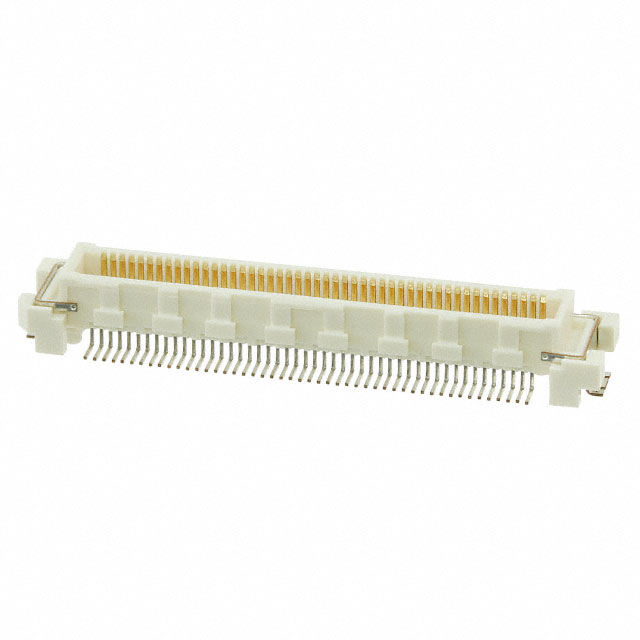

Hirose Electric Co Ltd FX10A-96P-SV1(71)	2	Surface Mount	0.02 "	0.5 mm	96	5 mm	0.177 in	4.5 mm	Header Outer Shroud Contacts	Gold	0.1 Ám	4 Áin	Board Guide Solder Retention
Hirose Electric Co Ltd FX10A-168S-SV(84)	2	Surface Mount	0.02 "	0.5 mm		4 mm 5 mm	0.126 in	3.2 mm	Receptacle Center Strip Contacts	Gold			Board Guide Solder Retention	168
Hirose Electric Co Ltd FX10A-100P/10-SV1(91)	2	Surface Mount	0.02 "	0.5 mm	100	5 mm	0.177 in	4.5 mm	Header Outer Shroud Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-100S/10-SV(71)	2	Surface Mount	0.02 "	0.5 mm	100	4 mm 5 mm	0.126 in	3.2 mm	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-168S-SV(85)	2	Surface Mount	0.02 "	0.5 mm		4 mm 5 mm 6 mm 7 mm 8 mm	0.126 in	3.2 mm	Receptacle Center Strip Contacts	Gold	0.76 Ám	30 Áin	Board Guide Solder Retention	168

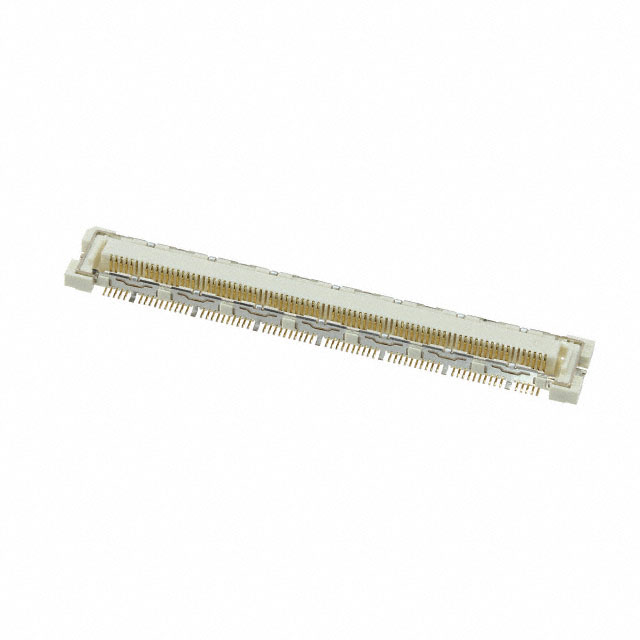

Hirose Electric Co Ltd FX10A-140S/14-SV(71)	2	Surface Mount	0.02 "	0.5 mm	140	4 mm 5 mm	0.126 in	3.2 mm	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-100P/10-SV	2	Surface Mount	0.02 "	0.5 mm	100	4 mm			Header Outer Shroud Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-168P-SV1(83)	2	Surface Mount	0.02 "	0.5 mm		5 mm	0.177 in	4.5 mm	Header Outer Shroud Contacts	Gold	0.76 Ám	30 Áin	Board Guide Solder Retention	168
Hirose Electric Co Ltd FX10A-140P/14-SV1(71)	2	Surface Mount	0.02 "	0.5 mm	140	5 mm	0.177 in	4.5 mm	Header Outer Shroud Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-80S/8-SV(21)	2	Surface Mount	0.02 "	0.5 mm	80	4 mm 5 mm	0.126 in	3.2 mm	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	Board Guide Ground Plate Solder Retention
