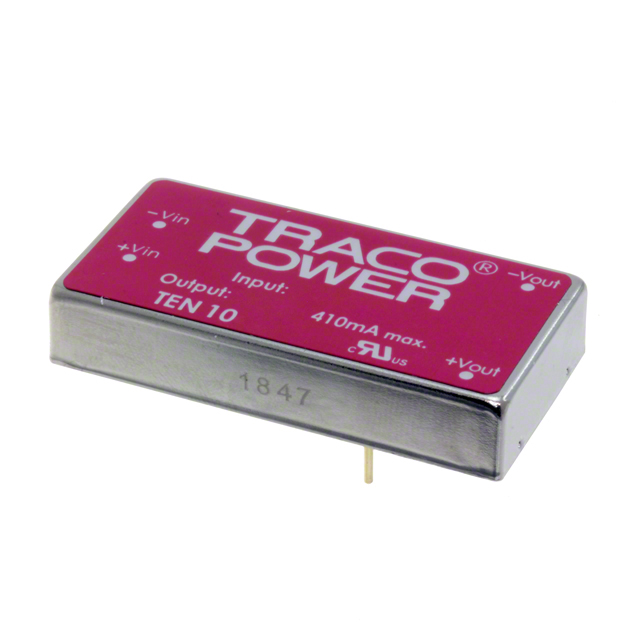

TEN 10 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT METAL CASE

Part	Efficiency	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension	Type	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Current - Output (Max)	Applications	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TEN 10-2421	80 %	2	10 W	18 V	OCP OVP SCP	5 V	-40 °C	85 °C	1.5 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	36 V	5-DIP Module	Through Hole	1 A	ITE (Commercial)	-5 V
Traco Power TEN 10-1215	81 %	1	10 W	9 V	OCP OVP SCP	24 V	-40 °C	85 °C	1.5 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	18 V	5-DIP Module 4 Leads	Through Hole		ITE (Commercial)		415 mA
Traco Power TEN 10-4823	83 %	2	10 W	36 V	OCP OVP SCP	15 V	-40 °C	85 °C	1.5 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	75 V	5-DIP Module	Through Hole	330 mA	ITE (Commercial)	-15 V		330 mA
Traco Power TEN 10-4821	81 %	2	10 W	36 V	OCP OVP SCP	5 V	-40 °C	85 °C	1.5 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	Isolated Module	75 V	5-DIP Module	Through Hole	1 A	ITE (Commercial)	-5 V
