FGY4L140T120SWD Series

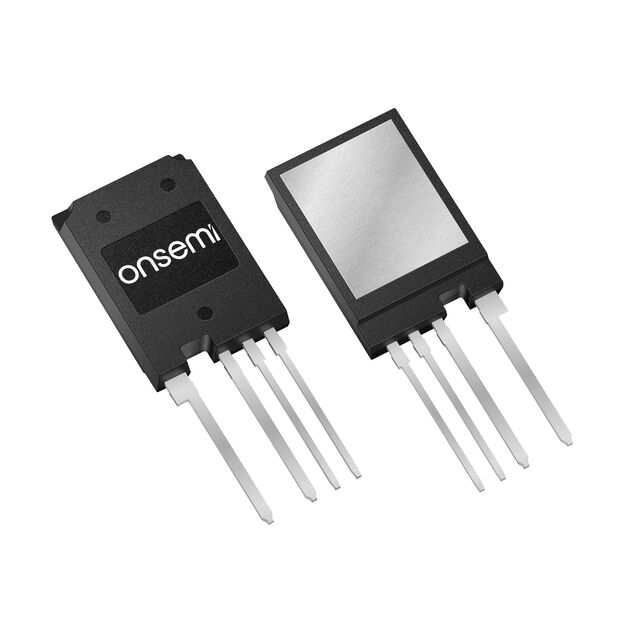

IGBT – Power, Co-PAK N-Channel, Field Stop VII (FS7), TO247-4L 1200 V, 1.7 V, 140 A

Catalog

IGBT – Power, Co-PAK N-Channel, Field Stop VII (FS7), TO247-4L 1200 V, 1.7 V, 140 A

Part	Current - Collector (Ic) (Max) [Max]	Current - Collector Pulsed (Icm)	Mounting Type	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Reverse Recovery Time (trr)	Supplier Device Package	Power - Max [Max]	Test Condition	Gate Charge	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Switching Energy
ON Semiconductor FGY4L140T120SWD	200 A	560 A	Through Hole	2 V	1200 V	Field Stop	266.9 ns	TO-247-4L	1250 W	4.7 Ohm 15 V 140 A 600 V	426 nC	TO-247-4	-55 °C	175 ░C	3.9 mJ 4.6 mJ

Catalog

IGBT – Power, Co-PAK N-Channel, Field Stop VII (FS7), TO247-4L 1200 V, 1.7 V, 140 A

Key Features

• Maximum Junction Temperature TJ = 175C

• Positive Temperature Coefficient

• High Current Capability

• Smooth and Optimized Switching

• Low Switching Loss

• RoHS Compliant

Description

Using the novel field stop 7th generation IGBT technology and the Gen7 Diode in TO247 4−lead package, FGY4L140T120SWD offers the optimum performance with low switching and conduction losses for high−efficiency operations in various applications like Solar Inverter, UPS and ESS.
