PCS15-24A Series

Catalog

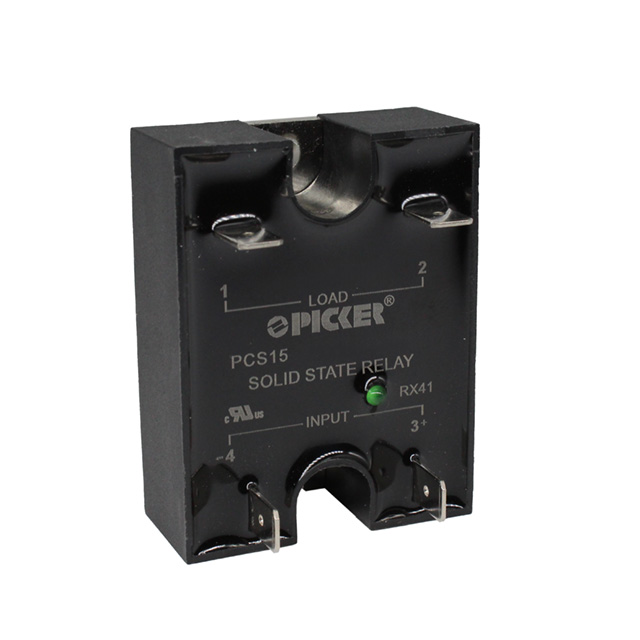

SSR RELAY 10A 48~280VAC QUICK CO

Part	Output Type	Supplier Device Package	Mounting Type	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]
Picker Components PCS15-24A-240A-10ZYLQ	AC Zero Cross	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	280 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-240A-10ZL	AC Zero Cross	Hockey Puck	Chassis Mount	Screw Terminal	280 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-380A-10ZLQ	AC Zero Cross	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	440 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-240A-40ZYLQ	AC Zero Cross	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	280 V	48 V	40 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-240A-10ZLQ	AC Zero Cross	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	280 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-240A-40ZYL	AC Zero Cross	Hockey Puck	Chassis Mount	Screw Terminal	280 V	48 V	40 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-380A-10ZYLQ	AC Zero Cross	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	440 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-240A-10ZYL	AC Zero Cross	Hockey Puck	Chassis Mount	Screw Terminal	280 V	48 V	10 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
Picker Components PCS15-24A-380A-40ZYL	AC Zero Cross	Hockey Puck	Chassis Mount	Screw Terminal	440 V	48 V	40 A	80 °C	-30 ░C	Hockey Puck	19.2 VAC	28.8 VAC
