HK-LR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS
| Part | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Housing Color | Shield Termination | Number of Ports | Center Contact Material | Fastening Type | Frequency - Max [Max] | Impedance | Contact Termination | Connector Type | Connector Style [x] | Mounting Type | Features | Includes | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

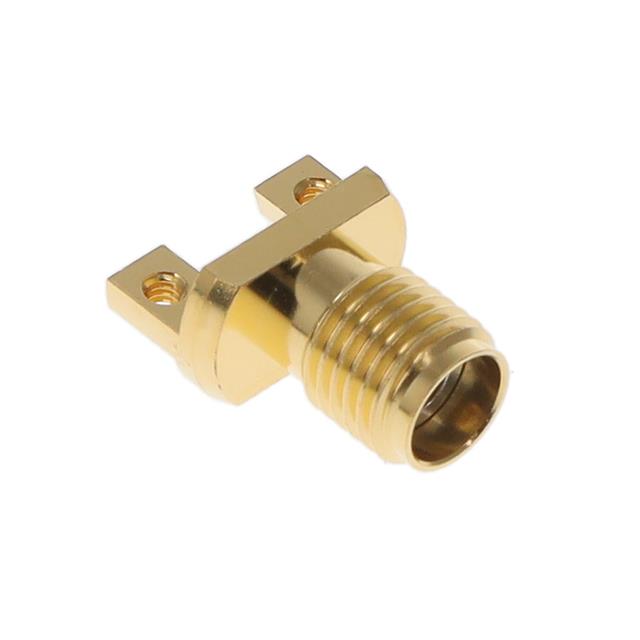

 Hirose Electric Co Ltd | Gold | Gold | -55 C | 105 ░C | Polyetherimide (PEI) | Brass | Gold | Screw | 1 | Beryllium Copper | Threaded | 40 GHz | 50 Ohms | Compression | Receptacle Female Socket | 2.92 mm | Board Edge End Launch | Mounting Hardware | ||

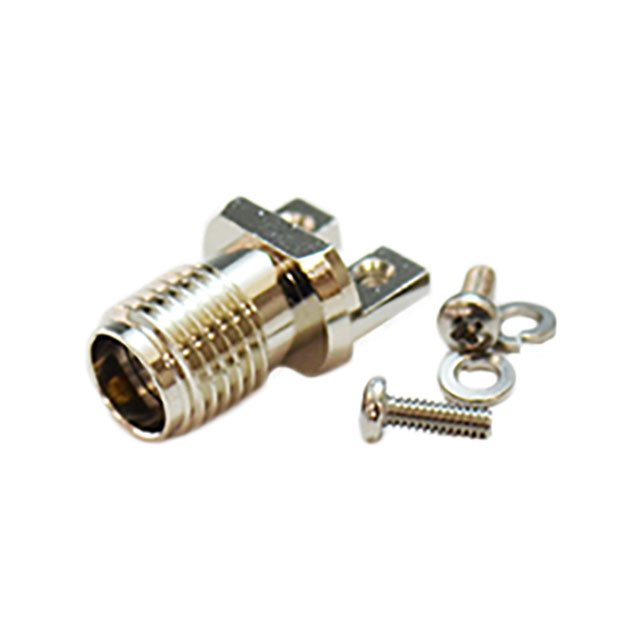

 Hirose Electric Co Ltd | Nickel | Gold | -55 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Brass | Silver | Screw | 1 | Beryllium Copper | Threaded | 40 GHz | 50 Ohms | Compression | Receptacle Female Socket | 2.92 mm | Board Edge End Launch | Mounting Hardware | 1 Connector 2 Screws 2 Spring Washers | 500 |

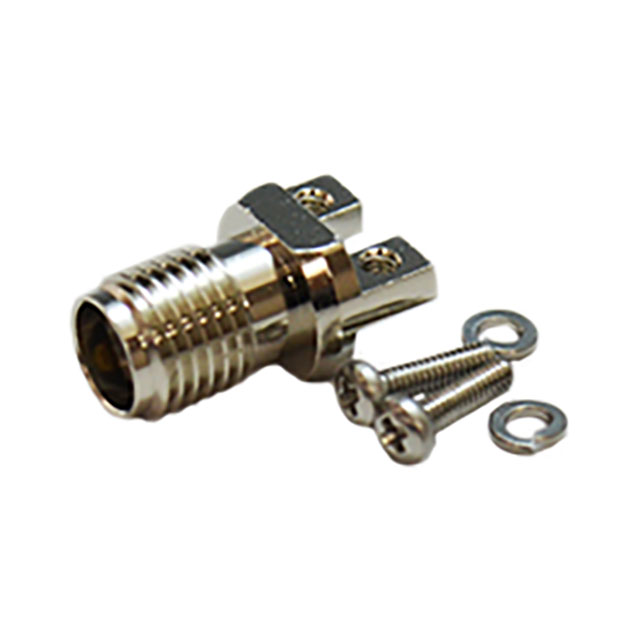

 Hirose Electric Co Ltd | Nickel | Gold | -55 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Brass | Silver | Screw | 1 | Beryllium Copper | Threaded | 40 GHz | 50 Ohms | Compression | Receptacle Female Socket | 2.92 mm | Board Edge End Launch | Mounting Hardware | 1 Connector 2 Screws 2 Spring Washers | 500 |

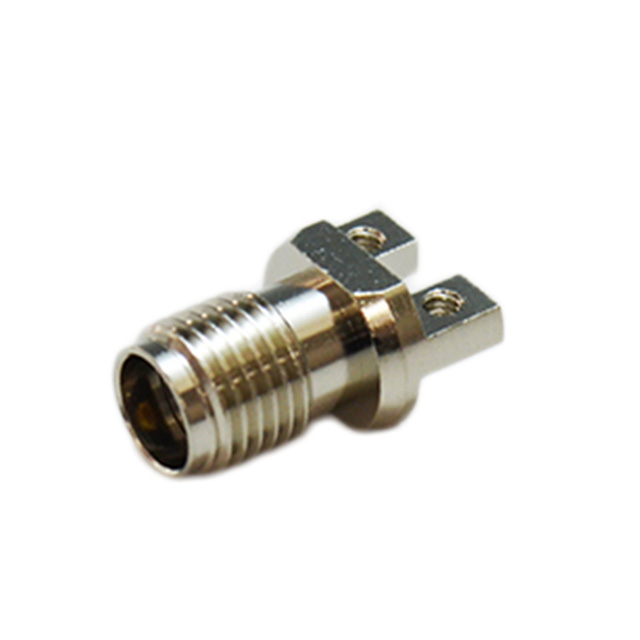

 Hirose Electric Co Ltd | Nickel | Gold | -55 C | 105 ░C | Polytetrafluoroethylene (PTFE) | Brass | Silver | Screw | 1 | Beryllium Copper | Threaded | 40 GHz | 50 Ohms | Compression | Receptacle Female Socket | 2.92 mm | Board Edge End Launch | 500 |
