JR21WR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT FMALE 16POS SOLDER CUP
| Part | Mounting Type | Connector Type | Contact Shape | Note | Type | Orientation | Mounting Feature | Ingress Protection | Fastening Type | Shielding | Shell Size - Insert [custom] | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Color | Cable Opening | Cable Opening | Material Flammability Rating | Voltage Rating | Contact Material | Contact Finish - Mating | Primary Material | Insert Material | Applications | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Panel Mount | Receptacle Housing | Circular | Contacts Not Included | For Male Pins | Keyed | Flange | IP67 - Dust Tight Waterproof | Threaded | Unshielded | 21 | 10 | Crimp | 85 °C | -25 °C | |||||||||||||||

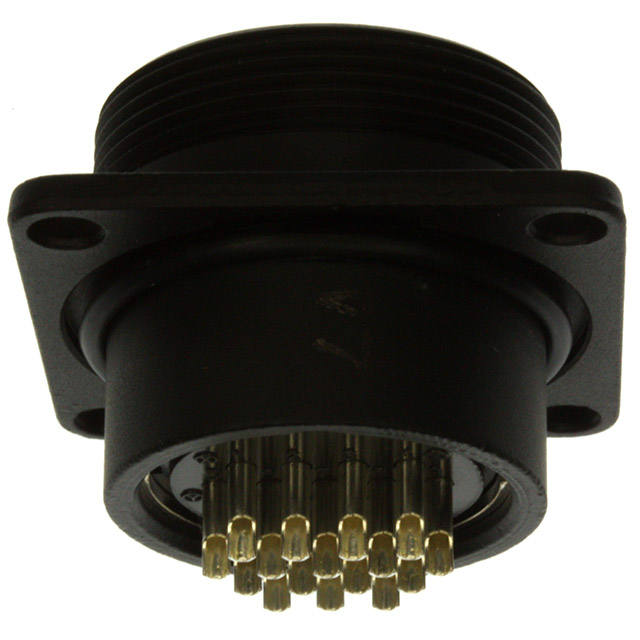

 Hirose Electric Co Ltd | Panel Mount | Receptacle Female Sockets | Keyed | Flange | IP67/IP68 | Threaded | 21 | 16 | 85 °C | -25 °C | 5 A | 78.7 µin | 2 µm | Aluminum Alloy | Black | 0.941 in | 23.9 mm | UL94 V-0 | 100 VAC 140 VDC | Copper Alloy | Silver | Metal | Phenol Formaldehyde (PF) | Automotive Industrial Telecommunications | Black Chromium | |||||

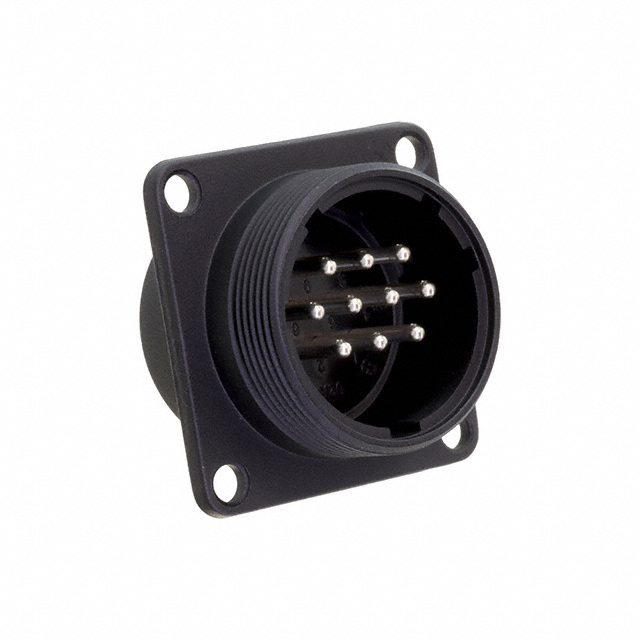

 Hirose Electric Co Ltd | Panel Mount | Receptacle Male Pins | Keyed | Flange | IP67/IP68 | Threaded | Unshielded | 21 | 10 | 85 °C | -25 °C | 10 A | 118.1 µin | 3 µm | Aluminum Alloy | Black | UL94 V-0 | 100 VAC 140 VDC | Copper Alloy | Silver | Metal | Phenol Formaldehyde (PF) | Automotive Industrial Telecommunications | Black Chromium |
