AMA40 Series

Manufacturer: aimtec

Catalog

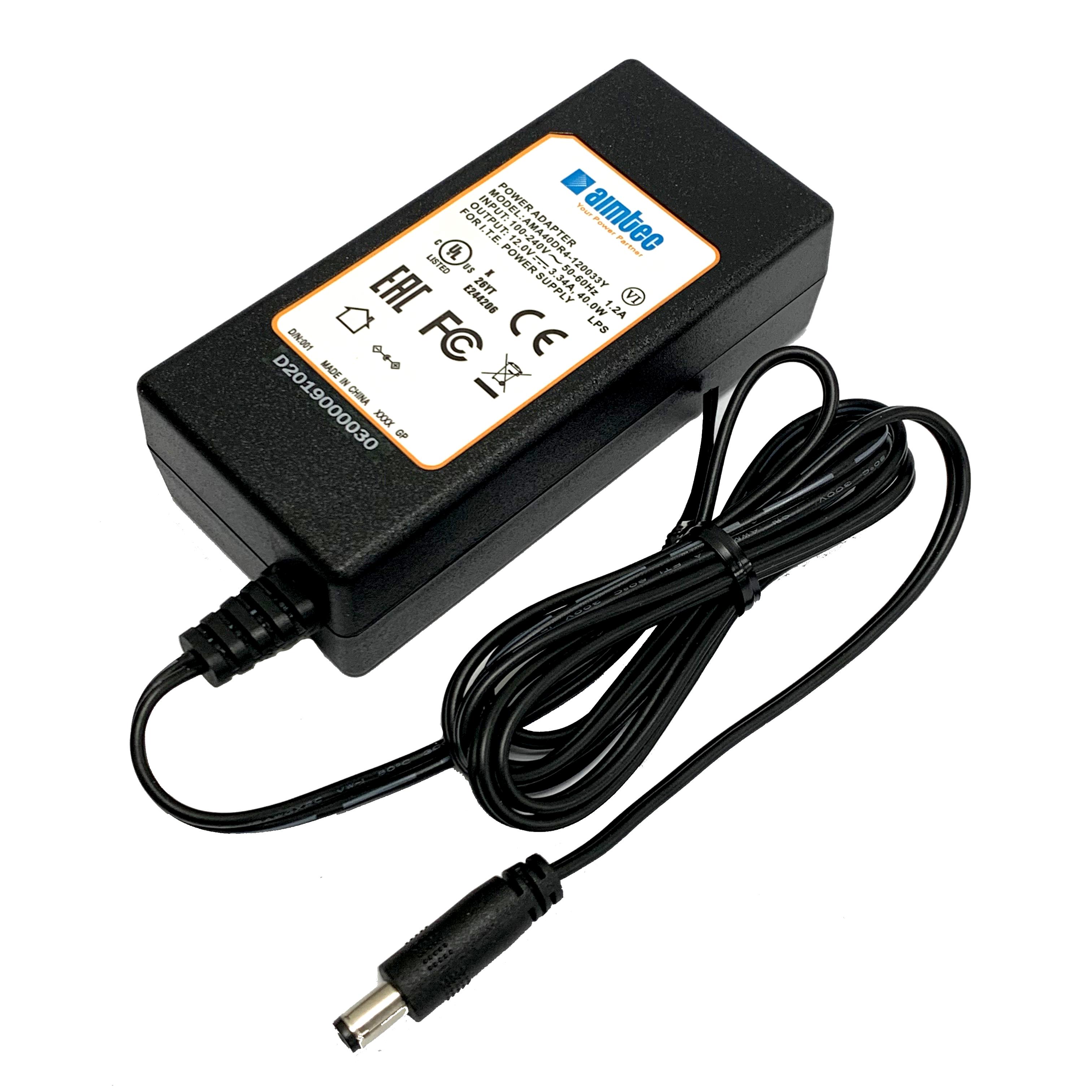

AC/DC DESKTOP ADAPTER 12V 40W

Part	Output Connector	Output Connector [diameter]	Output Connector [x]	Approval Agency	No Load Power Consumption	Standard Number	Weight [custom]	Weight [custom]	Form	Efficiency	Voltage - Output	Operating Temperature [Max]	Power (Watts)	Input Connector	Input Type	Polarization	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Region Utilized	Output Connector [z]
aimtec AMA40DR4-120033Y	Barrel Plug Female	2.1 mm 5.5 mm	9.5 mm 10 mm	CE FCC UL	75 mW 100 mW	60950-1 62368-1	210 g	0.463 lb	Desktop Desktop (Class I)	Level VI	12 V	40 °C	40 W	IEC 320-C14	Cord (Sold Separately)	Positive Center	111 mm	4.37 in	1.26 "	32 mm	52 mm	2.05 in	87 %	264 VAC	90 VAC	ITE (Commercial)	1.5 m	60.2 in	3.34 A	International
aimtec AMA40DR5-120033Y	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	CE FCC UL	75 mW	60950-1 62368-1	210 g	0.463 lb	Desktop (Class I)	Level VI	12 V	40 °C	40 W	IEC 320-C14	Cord (Sold Separately)	Positive Center	111 mm	4.37 in	1.26 "	32 mm	52 mm	2.05 in		264 VAC	90 VAC	ITE (Commercial)	1.5 m	60.2 in	3.34 A	International
aimtec AMA40DR5L-120033Y	Barrel Plug R/A	2.5 mm 5.5 mm		CE FCC UL	75 mW	60950-1 62368-1	210 g	0.463 lb	Desktop (Class I)	Level VI	12 V	40 °C	40 W	IEC 320-C14	Cord (Sold Separately)	Positive Center	111 mm	4.37 in	1.26 "	32 mm	52 mm	2.05 in		264 VAC	90 VAC	ITE (Commercial)	1.5 m	60.2 in	3.34 A	International	9.5 mm
