PSMN027 Series

Catalog

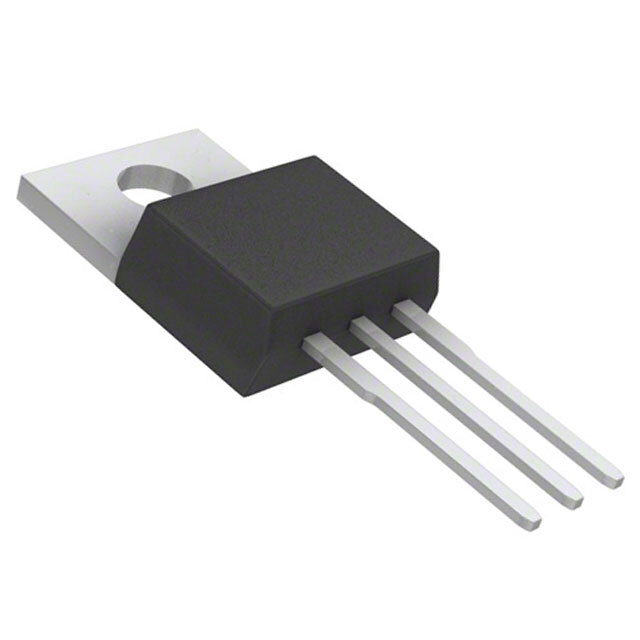

MOSFET N-CH 100V 37A TO220AB

Part	Package / Case	Current - Continuous Drain (Id) @ 25°C	Technology	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	FET Type	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Vgs (Max)
Freescale Semiconductor - NXP PSMN027-100PS,127	TO-220-3	37 A	MOSFET (Metal Oxide)	1624 pF	TO-220AB	N-Channel	Through Hole	30 nC	-55 °C	175 ░C	26.8 mOhm	10 V	100 V	103 W	20 V
Freescale Semiconductor - NXP PSMN027-100BS,118	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	37 A	MOSFET (Metal Oxide)	1624 pF	D2PAK	N-Channel	Surface Mount	30 nC	-55 °C	175 ░C	26.8 mOhm	10 V	100 V	103 W	20 V
