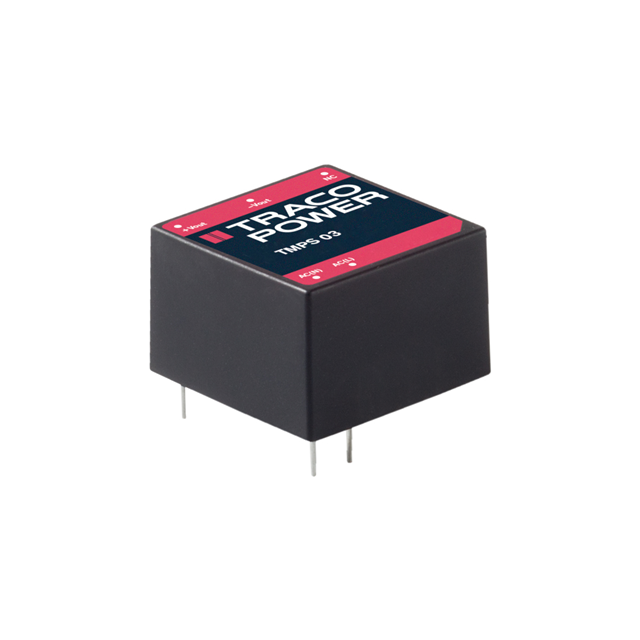

TMPS 03 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER MODULES 3W AC/DC POWER SUPPLY IN A PCB MOUNT PLASTIC CASE
| Part | Features | Approval Agency | Power (Watts) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] | Type | Voltage - Output 1 | Efficiency | Number of Outputs | Applications | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Universal Input | CB CE cURus | 3 W | Through Hole | 70 °C | -25 °C | 5-DIP Module | 85 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | 15 V | 78 % | 1 | Household Appliances ITE (Commercial) | 200 mA | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in |
 Traco Power | Universal Input | CB CE cURus | 3 W | Through Hole | 70 °C | -25 °C | 5-DIP Module | 85 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | 24 V | 78 % | 1 | Household Appliances ITE (Commercial) | 125 mA | 0.64 in | 1 " | 25.4 mm | 16.3 mm | 25.4 mm | 1 in |
