MIL-PRF-19500/368
Key Features
- JEDEC registered 2N3439 through 2N3440 series.JANHC, JANKC, JAN, JANTX, JANTXV, and JANS qualifications are available per MIL-PRF-19500/368
- RoHS compliant versions available (commercial grade only)
- VCE(sat) = 0.5 V @ IC = 50 mA
- Turn-On time ton = 1.0 µs max @ IC = 20 mA, IB1 = 2.0 mA
- Turn-Off time toff = 10 µs max @ IC = 20 mA, IB1 = -IB2 = 2.0 mA
- General purpose transistors for medium power applications requiring high frequency switching and low package profile
- Military and other high-reliability applications
Description
AI

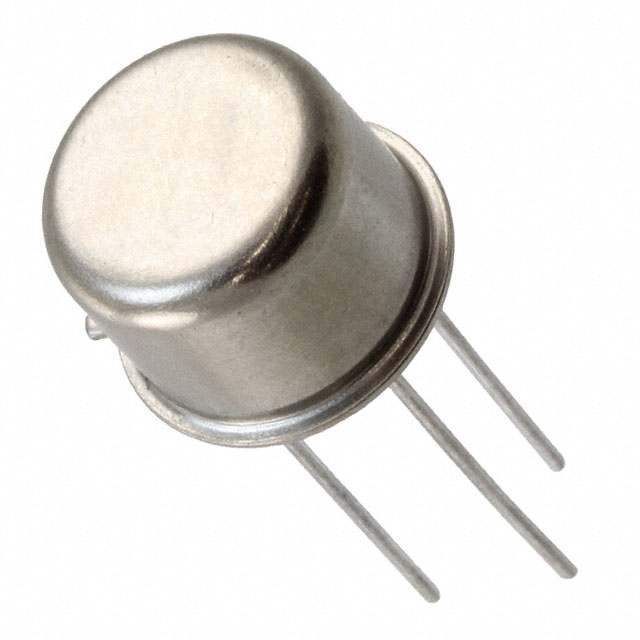

This family of 2N3439 through 2N3440, high-frequency, epitaxial planar NPN transistors have a low saturation voltage, and are military qualified up to the JANS level for high-reliability applications. These transistors are available in a TO-205AD (TO-39) ,no suffix, a TO-205AA (TO-5), L suffix and a low profile surfacemount U4 and UA packaging. Microchip also offers numerous other transistor products to meet higher and lower power ratings with various switching speed requirements in both through-hole and surface-mount packages.
