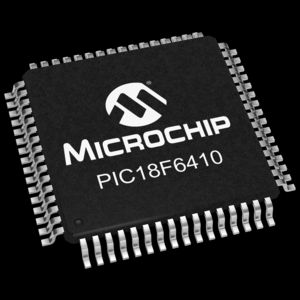

PIC18LF6410 Series

Catalog

8-BIT, FLASH, 40 MHZ, MICROCONTROLLER, PQFP64, 10 X 10 MM, 1 MM, LEAD FREE, TQFP-64

Part	Program Memory Type	RAM Size	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Core Size	Speed	Data Converters	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Mounting Type	Connectivity	Oscillator Type	Peripherals	Number of I/O	Package / Case
Microchip Technology PIC18LF6410-I/PT	FLASH	768 x 8	16 KB	85 °C	-40 °C	PIC	8-Bit	40 MHz	10 b 12	5.5 V	2 V	64-TQFP (10x10)	Surface Mount	I2C SPI UART/USART	Internal	Brown-out Detect/Reset HLVD POR PWM WDT	54	64-TQFP
Microchip Technology PIC18LF6410T-I/PT	FLASH	768 x 8	16 KB	85 °C	-40 °C	PIC	8-Bit	40 MHz	10 b 12	5.5 V	2 V	64-TQFP (10x10)	Surface Mount	I2C SPI UART/USART	Internal	Brown-out Detect/Reset HLVD POR PWM WDT	54	64-TQFP
Microchip Technology PIC18F6410-E/PT	FLASH	768 x 8	16 KB	125 °C	-40 °C	PIC	8-Bit	25 MHz	10 b 12	5.5 V	4.2 V	64-TQFP (10x10)	Surface Mount	I2C SPI UART/USART	Internal	Brown-out Detect/Reset HLVD POR PWM WDT	54	64-TQFP

Catalog

Key Features

• * Up to 10 MIPS Performance at 3V

• * C compiler optimized RISC architecture

• * 8x8 Single Cycle Hardware Multiply

• * Internal oscillator support-31 kHz to 8MHz with 4xPLL

• * Fail-Safe Clock Monitor- allows safe shutdown if clock fails

• * Watchdog Timer with separate RC oscillator

• * Wide operating Voltage range; 2.0V to 5.5V

• * Run, Idle and SLEEP modes

• * 10-bit ADC, 12 channels, 100K samples per second

• * Programmable Low Voltage Detection Module

• * Programmable Brown-out-Reset Module

• * Two Analog Comparators

• * Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode

• * EUSART module including LIN bus support

• * Four Timer modules

• * Three CPP

Description

PIC18F Microcontroller with 16K bytes of Flash and 768 bytes of RAM. The PIC18F6410 features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer applications.
