TXS0102 Series

2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application

Catalog

2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application

Part	Mounting Type	Number of Circuits	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Features	Package / Case	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Channels per Circuit	Translator Type	Data Rate	Output Type	Supplier Device Package	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case [y]
Texas Instruments TXS0102YZPR	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing	8-XFBGA DSBGA	2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	8-DSBGA	Bidirectional	85 °C	-40 °C

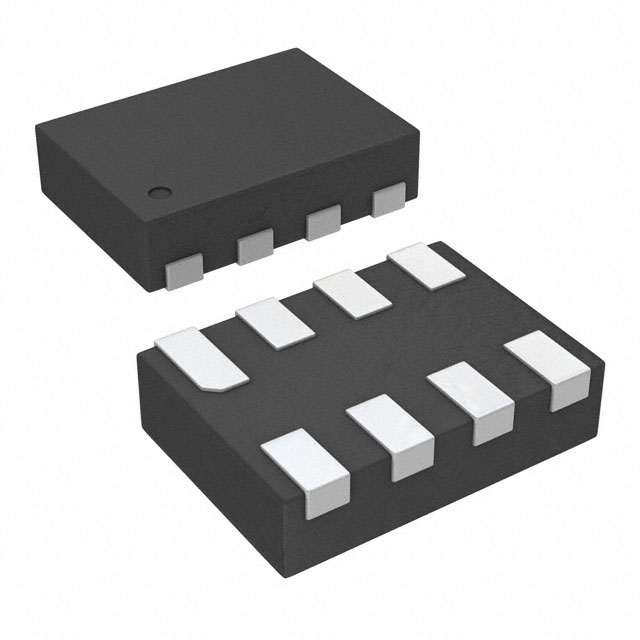

Texas Instruments TXS0102DQMR	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing	8-XFDFN	2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	8-X2SON (1.8x1.2)	Bidirectional	85 °C	-40 °C

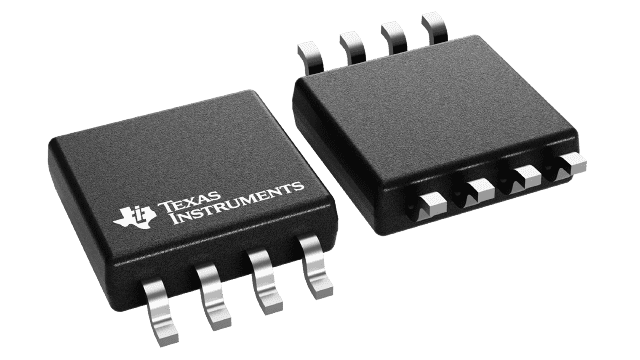

Texas Instruments TXS0102DCTR	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing		2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	SM8	Bidirectional	85 °C	-40 °C
Texas Instruments TXS0102DCUT	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing	8-VFSOP	2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull		Bidirectional	85 °C	-40 °C	2.3 mm	0.091 in

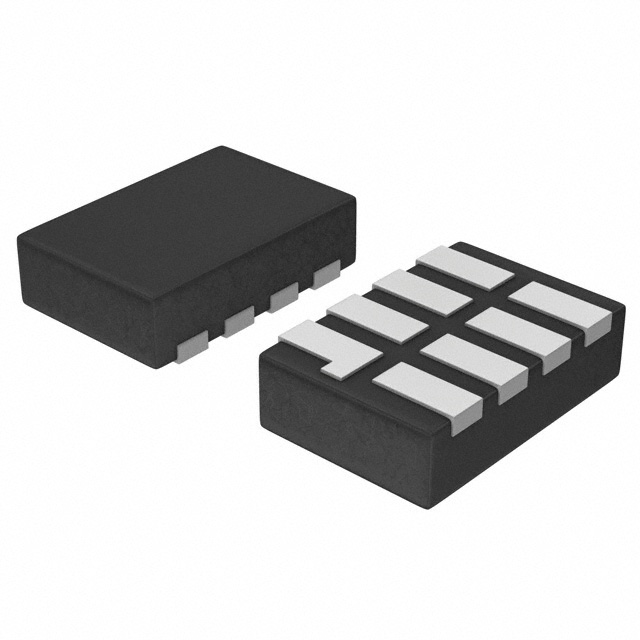

Texas Instruments TXS0102DQER	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing	8-XFDFN	2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	8-X2SON (1.4x1)	Bidirectional	85 °C	-40 °C
Texas Instruments TXS0102DCTTG4	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing		2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	SM8	Bidirectional	85 °C	-40 °C
Texas Instruments TXS0102DCTTE4	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing		2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	SM8	Bidirectional	85 °C	-40 °C
Texas Instruments TXS0102DCUR	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing	8-VFSOP	2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull		Bidirectional	85 °C	-40 °C	2.3 mm	0.091 in

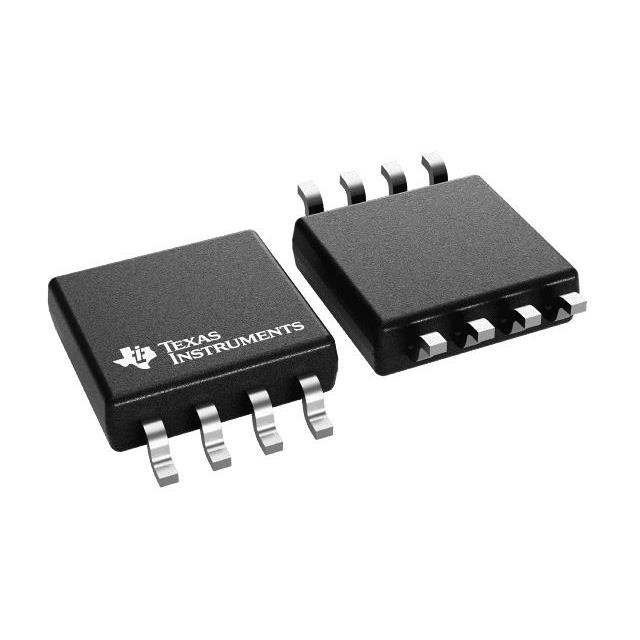

Texas Instruments TXS0102DCTRE4	Surface Mount	1	1.65 V	3.6 V			2.3 V	5.5 V		Voltage Level	24 Mbps	Open Drain Push-Pull	SM8	Bidirectional	85 °C	-40 °C

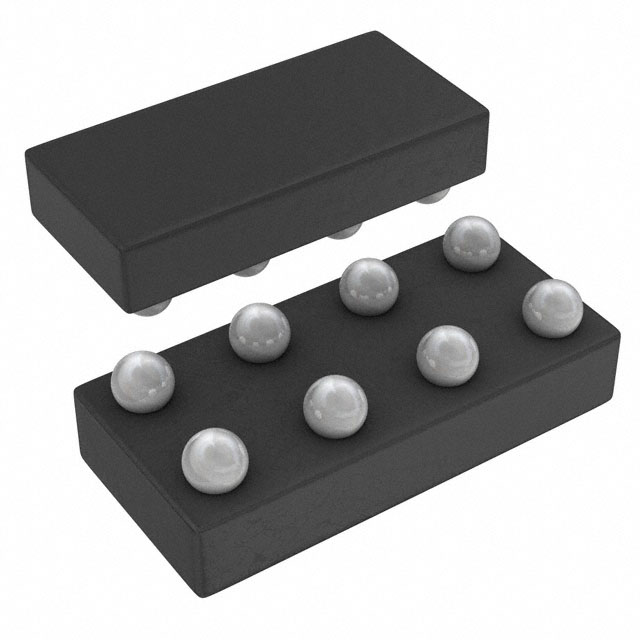

Texas Instruments TXS0102YZTR	Surface Mount	1	1.65 V	3.6 V	Auto-Direction Sensing		2.3 V	5.5 V	2	Voltage Level	24 Mbps	Open Drain Push-Pull	8-DSBGA	Bidirectional	85 °C	-40 °C

Catalog

2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application

Key Features

• No direction-control signal neededMaximum data rates:24 Mbps (push pull)2 Mbps (open drain)Available in the Texas Instruments NanoStar™ integrated circuit package1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (V CCA ≤ V CCB)V CC isolation feature: if either V CC input is at GND, both ports are in the High-Impedance stateNo power-supply sequencing required: either V CCA or V CCB can be ramped firstI off supports partial-power-down mode operationLatch-up performance exceeds 100 mA per JESD 78, Class IIESD protection exceeds JESD 22:A port:2500-V Human-Body Model (A114-B)250-V Machine Model (A115-A)1500-V Charged-Device Model (C101)B port:8-kV Human-Body Model (A114-B)250-V Machine Model (A115-A)1500-V Charged-Device Model (C101)No direction-control signal neededMaximum data rates:24 Mbps (push pull)2 Mbps (open drain)Available in the Texas Instruments NanoStar™ integrated circuit package1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (V CCA ≤ V CCB)V CC isolation feature: if either V CC input is at GND, both ports are in the High-Impedance stateNo power-supply sequencing required: either V CCA or V CCB can be ramped firstI off supports partial-power-down mode operationLatch-up performance exceeds 100 mA per JESD 78, Class IIESD protection exceeds JESD 22:A port:2500-V Human-Body Model (A114-B)250-V Machine Model (A115-A)1500-V Charged-Device Model (C101)B port:8-kV Human-Body Model (A114-B)250-V Machine Model (A115-A)1500-V Charged-Device Model (C101)

Description

This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the V CCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the V CCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the V CCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the V CCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
