08015SS Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 15 MM, SLEEVE BEARING, 30 CFM

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Noise	Power (Watts)	Bearing Type	Termination	Fan Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Features	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]
NMB TECHNOLOGIES 08015SS-12M-AT-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB(A)	1.8 W	Sleeve	3 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart Speed Sensor (Tach)	2800 RPM	70 °C	-10 °C	30 CFM	0.84 mł/min	15 mm	29.9 Pa	0.12 in H2O

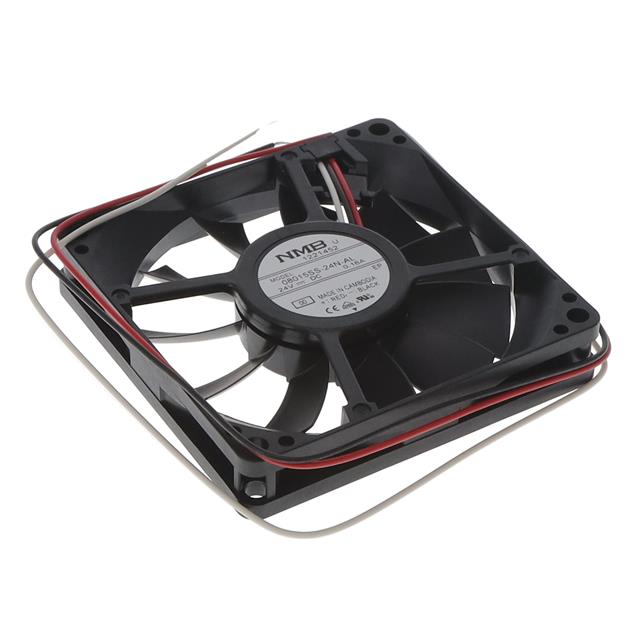

NMB TECHNOLOGIES 08015SS-24N-AL-00	Plastic	26.4 VDC	12 VDC	Plastic	120 mA	40000 Hrs	34 dB(A)	2.88 W	Sleeve	3 Wire Leads	Tubeaxial	24 VDC	80 mm	80 mm	Auto Restart Locked Rotor Sensor	3100 RPM	70 °C	-10 °C	33.9 CFM	0.949 m³/min	15 mm	34.9 Pa	0.14 in H2O

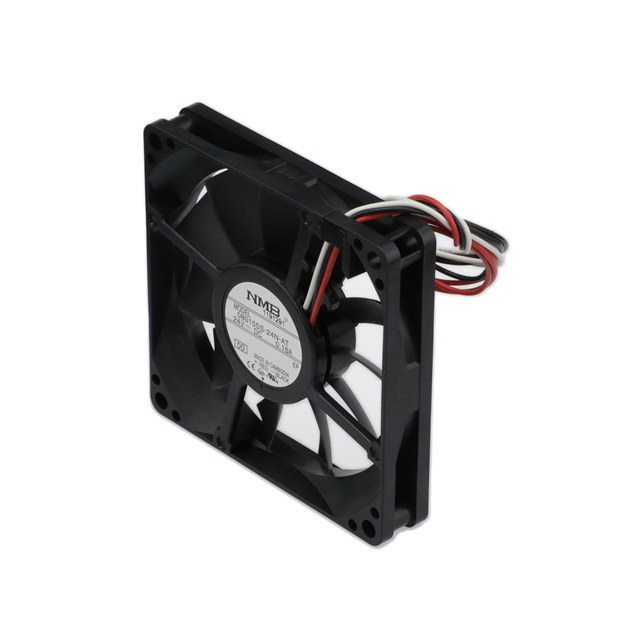

NMB TECHNOLOGIES 08015SS-24N-AT-00	Plastic	26.4 VDC	12 VDC	Plastic	120 mA	40000 Hrs	34 dB(A)	2.88 W	Sleeve	3 Wire Leads	Tubeaxial	24 VDC	80 mm	80 mm	Auto Restart Speed Sensor (Tach)	3100 RPM	70 °C	-10 °C	34 CFM	0.952 m³/min	15 mm	34.9 Pa	0.14 in H2O	0.122 lb	55.34 g
NMB TECHNOLOGIES 08015SS-12M-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB(A)	1.8 W	Sleeve	2 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart	2800 RPM	70 °C	-10 °C	30 CFM	0.84 mł/min	15 mm	29.9 Pa	0.12 in H2O

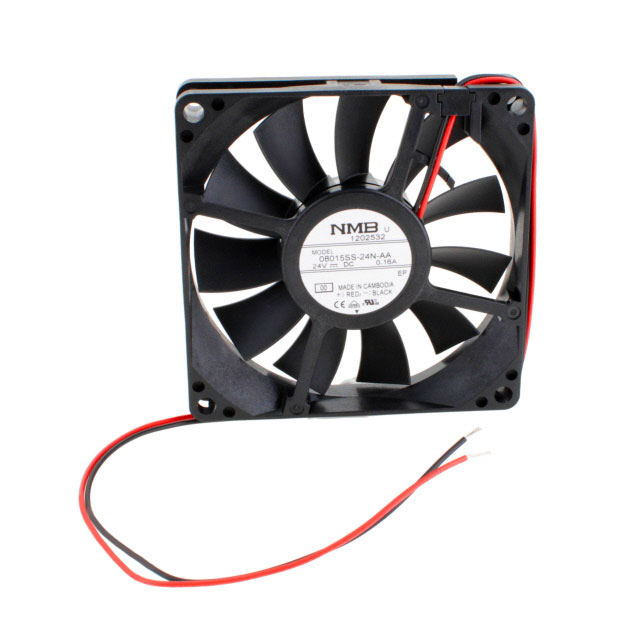

NMB TECHNOLOGIES 08015SS-24N-AA-00	Plastic	26.4 VDC	12 VDC	Plastic	120 mA	40000 Hrs	34 dB(A)	2.88 W	Sleeve	2 Wire Leads	Tubeaxial	24 VDC	80 mm	80 mm	Auto Restart	3100 RPM	70 °C	-10 °C	33.9 CFM	0.949 m³/min	15 mm	34.9 Pa	0.14 in H2O
NMB TECHNOLOGIES 08015SS-12L-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	110 mA	40000 Hrs	27.5 dB(A)	1.32 W	Sleeve	2 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart	2500 RPM	70 °C	-10 °C	26.8 CFM	0.75 mł/min	15 mm	22.4 Pa	0.09 in H2O
NMB TECHNOLOGIES 08015SS-12N-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	0.21 A	40000 Hrs	34 dB(A)	2.52 W	Sleeve	2 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart	3100 RPM	70 °C	-10 °C	33.9 CFM	0.949 m³/min	15 mm	34.9 Pa	0.14 in H2O
NMB TECHNOLOGIES 08015SS-12M-AL-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB(A)	1.8 W	Sleeve	3 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart Locked Rotor Sensor	2800 RPM	70 °C	-10 °C	30 CFM	0.84 mł/min	15 mm	29.9 Pa	0.12 in H2O
NMB TECHNOLOGIES 08015SS-12L-AT-00	Plastic	13.8 VDC	6 VDC	Plastic	110 mA	40000 Hrs	27.5 dB(A)	1.32 W	Sleeve	3 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart Speed Sensor (Tach)	2500 RPM	70 °C	-10 °C	26.8 CFM	0.75 mł/min	15 mm	22.4 Pa	0.09 in H2O

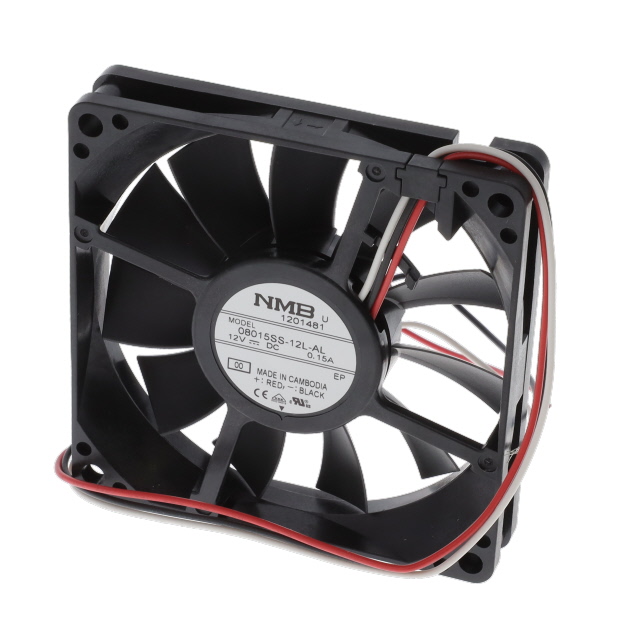

NMB TECHNOLOGIES 08015SS-12L-AL-00	Plastic			Plastic					Sleeve	3 Wire Leads	Tubeaxial	12 VDC	80 mm	80 mm	Auto Restart Locked Rotor Sensor		70 °C	-10 °C			15 mm
