A3C-48P Series

Catalog

CONN HEADER VERT 48POS 2MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Style	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Mounting Type	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Fastening Type	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Color

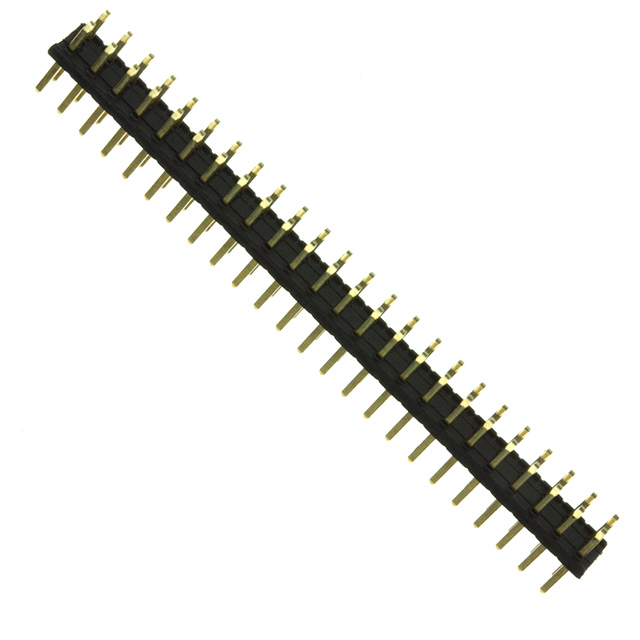

Hirose Electric Co Ltd A3C-48P-2DSA	5.1 mm 7.9 mm	Flash	Board to Board Cable	Gold	All	Square	Through Hole	Solder	Male Pin	2.6 mm	0.102 in	2	8 µin	0.203 µm	Header	7 mm	0.276 in	Push-Pull	48	UL94 V-0	-55 C	85 °C	0.9 mm	0.035 in	200 V	Nylon Polyamide (PA)	0.079 "	2 mm	Brass	Gold	2 mm	0.079 in	Unshrouded	Black
