DF40C Series

Catalog

CONN RCPT 100POS SMD GOLD

...

Part	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Number of Positions	Connector Type	Mated Stacking Heights	Pitch	Pitch	Features	Height Above Board	Contact Finish Thickness	Contact Finish Thickness

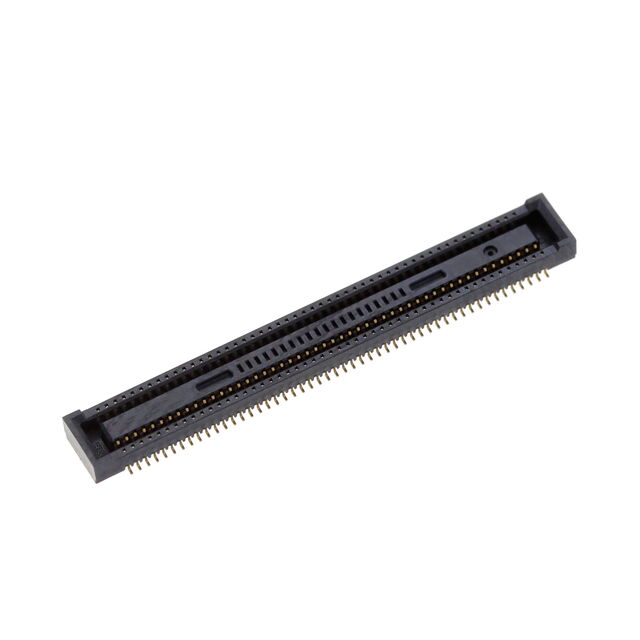

Hirose Electric Co Ltd DF40C-100DS-0.4V(58)	2	1.45 mm	0.057 in	Gold	Surface Mount	100	Receptacle Center Strip Contacts	1.5 mm 3 mm	0.4 mm	0.016 in
Hirose Electric Co Ltd DF40C-30DP-0.4V(58)	2		0.045 in	Gold	Surface Mount	30	Plug Outer Shroud Contacts	1.5 mm 2 mm 2.5 mm 3 mm 3.5 mm 4 mm	0.4 mm	0.016 in	Solder Retention	1.14 mm

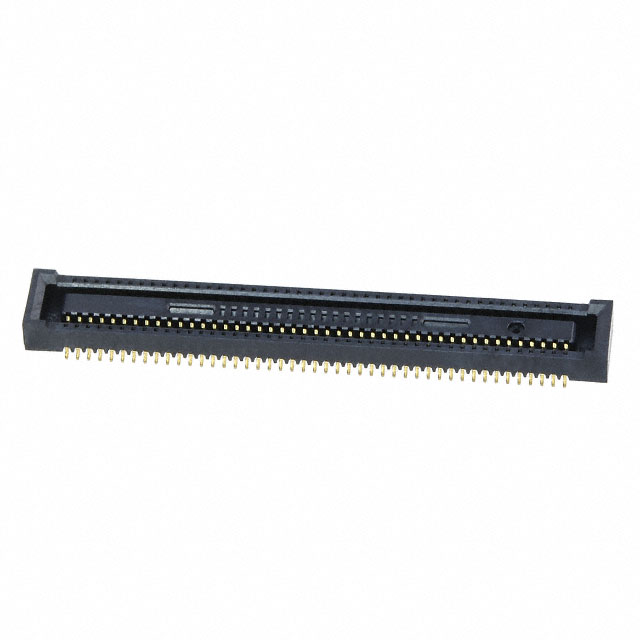

Hirose Electric Co Ltd DF40C-90DS-0.4V(51)	2	1.45 mm	0.057 in	Gold	Surface Mount	90	Receptacle Center Strip Contacts	1.5 mm	0.4 mm	0.016 in
Hirose Electric Co Ltd DF40C-30DP-0.4V(57)						30	Plug Outer Shroud Contacts
Hirose Electric Co Ltd DF40C-20DS-0.4V(55)						20	Receptacle Center Strip Contacts

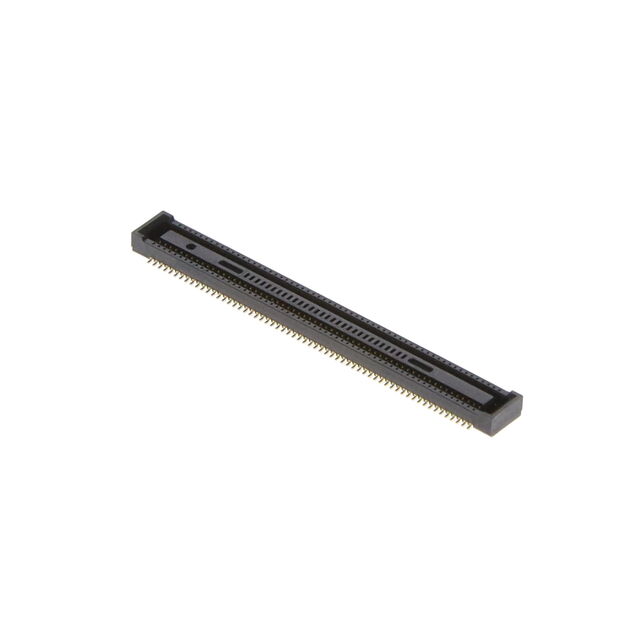

Hirose Electric Co Ltd DF40C-120DS-0.4V(51)	2	1.45 mm	0.057 in	Gold	Surface Mount	120	Receptacle Center Strip Contacts	1.5 mm	0.4 mm	0.016 in			1.97 Áin	0.05 Ám
Hirose Electric Co Ltd DF40C-50DP-0.4V(57)						50	Plug Outer Shroud Contacts
Hirose Electric Co Ltd DF40C-40DP-0.4V(68)						40	Plug Outer Shroud Contacts
Hirose Electric Co Ltd DF40C-20DP-0.4V(58)	2		0.045 in	Gold	Surface Mount	20	Plug Outer Shroud Contacts	1.5 mm 2 mm 2.5 mm 3 mm 3.5 mm 4 mm	0.4 mm	0.016 in	Solder Retention	1.14 mm
Hirose Electric Co Ltd DF40C-24DS-0.4V(77)						24	Receptacle Center Strip Contacts
