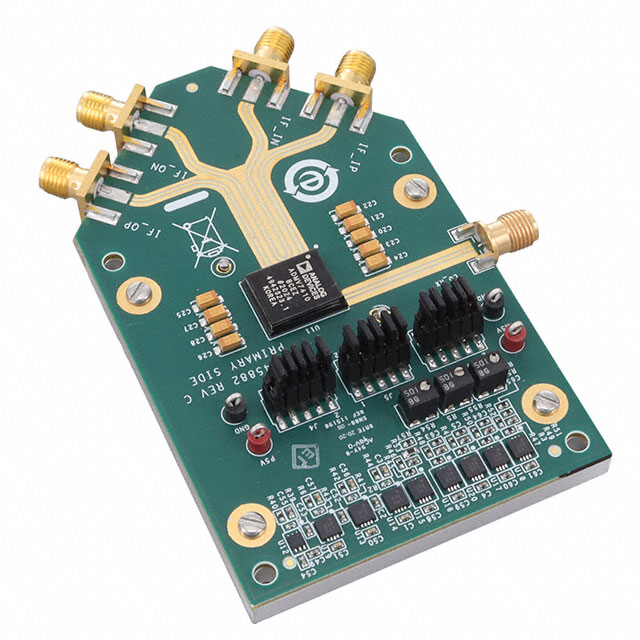

E-Band Low Noise Downconverter SiP, 71 GHz to 76 GHz
Key Features
• Conversion gain: 13 dB typical
• Image rejection: 30 dBc typical
• Noise figure: 5 dB typical
• Input IP3: 1 dBm typical
• Input IP2: 28 dBm typical
• Input P1dB: −8 dBm typical
• 6× LO leakage at RFIN: <−55 dBm typical
• I/Q amplitude imbalance: 0.2 dB typical
• I/Q phase imbalance: 5° typical

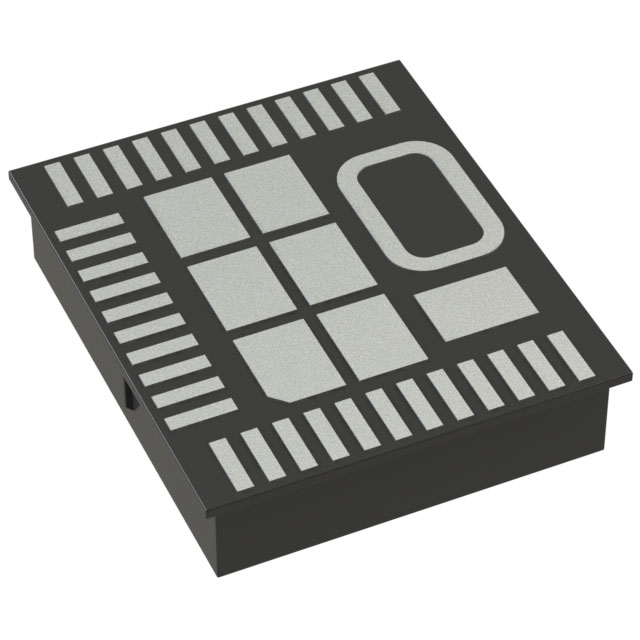

• Fully integrated, surface-mount, 34-terminal, 11 mm × 13 mm LGA_CAV package
Description
AI
The ADMV7410 is a fully integrated system in package (SiP) in phase/quadrature (I/Q) downconverter that operates between an intermediate frequency (IF) output range of dc and 2 GHz and a radio frequency (RF) input range of 71 GHz and 76 GHz. The device provides a small signal conversion gain of 13 dB with 30 dBc of image rejection. The ADMV7410 uses a low noise amplifier followed by an image rejection mixer that is driven by a 6× local oscillator (LO) multiplier. Differential I and Q mixer outputs are provided for direct conversion applications. Alternatively, the outputs can be combined using an external 90° hybrid and two external 180° hybrids for single-ended applications.The ADMV7410 comes in a fully integrated, surface-mount, 34-terminal, 11 mm × 13 mm, chip array small outline no lead cavity (LGA_CAV) package. The ADMV7410 operates over the −40°C to +85°C case temperature range.APPLICATIONSE-band communication systemsHigh capacity wireless backhaulsTest and measurementAerospace and defense
