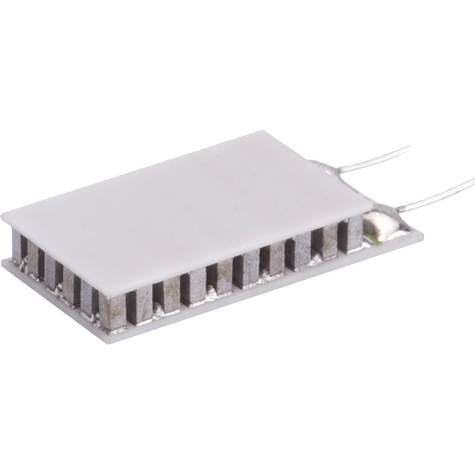

Thermoelectric Peltier Modules OptoTEC Series, Thermoelectric Cooler, 3.1W cooling power, Au plating Hot and Cold surface
Thermoelectric Peltier Modules OptoTEC Series, Thermoelectric Cooler, 3.1W cooling power, Au plating Hot and Cold surface
Thermoelectric Peltier Modules OptoTEC Series, Thermoelectric Cooler, 3.1W cooling power, Au plating Hot and Cold surface
| Part | Features | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Number of Stages | Delta Tmax @ Th | Height [z] | Qmax @ Th | Operating Temperature | Resistance | Voltage - Max [Max] | Type | Height | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tark Thermal Solutions | Lead Wires Non-Sealed | 800 mA | 3.4 mm | 3.4 mm | 1 | 67 °C | 2.79 mm | 0.4 W | 80 °C | 1.18 Ohms | 1 V | TEC (Thermoelectric Cooler) | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 800 mA | 3.25 mm | 4.88 mm | 1 | 67 °C | 0.6 W | 80 °C | 1.43 Ohms | 1.3 V | TEC (Thermoelectric Cooler) | 2.44 mm | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 2 A | 6.2 mm | 12.3 mm | 1 | 67 °C | 2.06 mm | 4.1 W | 80 °C | 1.57 Ohms | 3.4 V | TEC (Thermoelectric Cooler) | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 2 A | 6.1 mm | 6.1 mm | 1 | 67 °C | 2.51 mm | 80 °C | 0.63 Ohms | 1.4 V | TEC (Thermoelectric Cooler) | |||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 2 A | 8.1 mm | 8.1 mm | 1 | 67 °C | 2.54 mm | 4.2 W | 80 °C | 3.5 V | TEC (Thermoelectric Cooler) | Square | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 800 mA | 3.4 mm | 3.4 mm | 1 | 67 °C | 2.79 mm | 0.2 W | 80 °C | 520 mOhms | 0.5 V | TEC (Thermoelectric Cooler) | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 800 mA | 3.25 mm | 4.88 mm | 1 | 67 °C | 3.25 mm | 0.6 W | 80 °C | 1.43 Ohms | 1.3 V | TEC (Thermoelectric Cooler) | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 800 mA | 5 mm | 6.7 mm | 1 | 67 °C | 1 W | 80 °C | 2.35 Ohms | 2.1 V | TEC (Thermoelectric Cooler) | 2.44 mm | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 2 A | 6.2 mm | 12.3 mm | 1 | 67 °C | 4.1 W | 80 °C | 1.57 Ohms | 3.4 V | TEC (Thermoelectric Cooler) | 1.8 mm | ||
 Tark Thermal Solutions | Lead Wires Non-Sealed | 1.5 A | 6.2 mm | 12.3 mm | 1 | 67 °C | 2.21 mm | 3 W | 80 °C | 2.09 Ohms | 3.4 V | TEC (Thermoelectric Cooler) |
