W.FL2 Series

Catalog

RF CONNECTORS / COAXIAL CONNECTORS 50 OHM SMD CONN W.FL JACK STR

Part	Number of Ports	Mounting Type	Connector Type	Housing Color	Shield Termination	Fastening Type	Center Contact Material	Contact Termination	Impedance	Connector Style	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Body Material	Body Finish	Mating Cycles	Dielectric Material
Hirose Electric Co Ltd W.FL2-R-SMT-1(60)	1	Surface Mount	Receptacle Male Pin	Black	Solder	Snap-On	Brass	Solder	50 Ohms	W.FL2	6000 MHz
Hirose Electric Co Ltd W.FL2-LP-062HF
Hirose Electric Co Ltd W.FL2-LP-040HF-INS

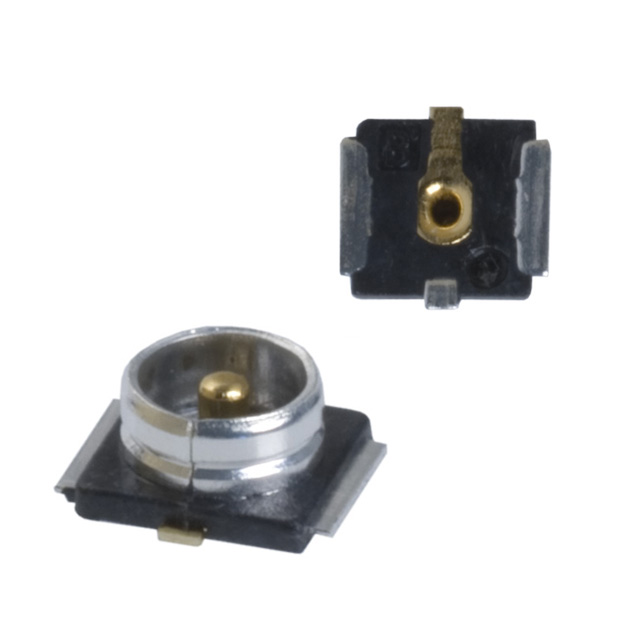

Hirose Electric Co Ltd W.FL2-R-SMT-1(10)	1	Surface Mount	Receptacle Male Pin	Black	Solder	Snap-On	Brass	Solder	50 Ohms	W.FL2	6000 MHz	90 °C	-40 C	Gold	Phosphor Bronze	Silver	20	Liquid Crystal Polymer (LCP)
Hirose Electric Co Ltd W.FL2-R-SMT-1(31)
Hirose Electric Co Ltd W.FL2-R-SMT-1(80)	1	Surface Mount	Receptacle Male Pin	Black	Solder	Snap-On	Brass	Solder	50 Ohms	W.FL2	6000 MHz	90 °C	-40 C	Gold	Phosphor Bronze	Silver	20	Liquid Crystal Polymer (LCP)
Hirose Electric Co Ltd W.FL2-LP-040-SHELL
Hirose Electric Co Ltd W.FL2-R-SMT-1(73)
