JAN2N6274-Transistor Series

NPN Silicon Power 150V, 50A

Catalog

NPN Silicon Power 150V, 50A

Part	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	Power - Max [Max]	Qualification	Current - Collector (Ic) (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Grade	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic

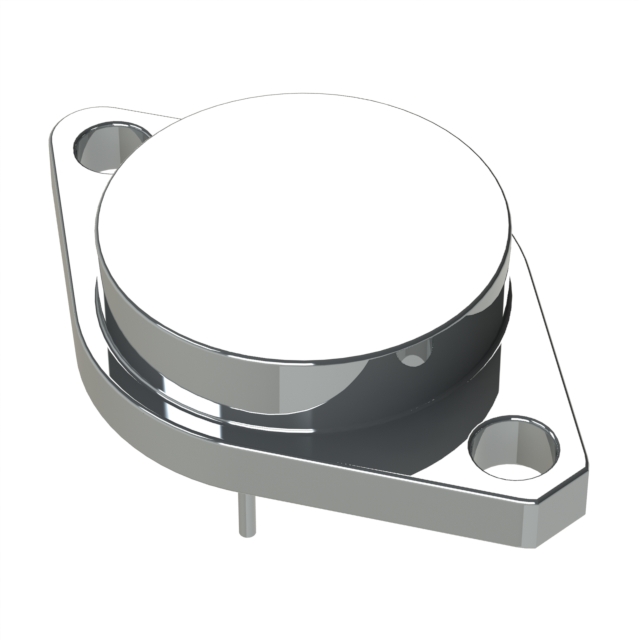

Microchip Technology JAN2N6274	TO-204AA TO-3	Through Hole	100 V	NPN	250 W	MIL-PRF-19500/514	50 A	30	Military	50 µA	3 V

Catalog

NPN Silicon Power 150V, 50A

Key Features

- The device package outlines are as follows: TO-3 for all device types.

Description

This specification covers the performance requirements for NPN silicon, power, 2N6274 and 2N6277 transistors. Three levels of product assurance (JAN, JANTX and JANTXV) are provided for each encapsulated device as specified in MIL-PRF-19500/514.
