S3D20065 Series
Manufacturer: SMC Diode Solutions
Beta
⌘K

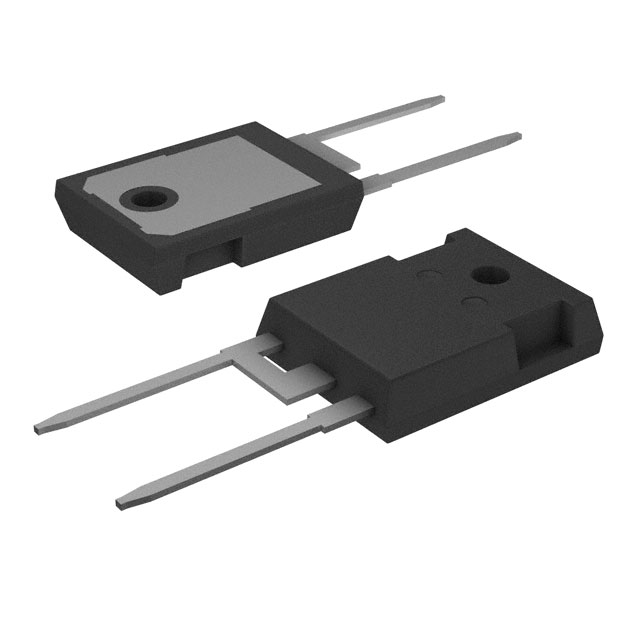

DIODE SIL CARB 650V 20A TO247AC
| Part | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Reverse Recovery Time (trr) | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] | Package / Case | Supplier Device Package | Technology | Speed | Current - Average Rectified (Io) (per Diode) | Diode Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SMC Diode Solutions | 175 ░C | -55 C | 30 µA | 1.7 V | Through Hole | 0 ns | 1200 pF | 650 V | TO-247-2 | TO-247AC | SiC (Silicon Carbide) Schottky | No Recovery Time | ||
 SMC Diode Solutions | 175 ░C | -55 C | 20 µA | 1.7 V | Through Hole | 0 ns | 650 V | TO-247-3 | TO-247AD | SiC (Silicon Carbide) Schottky | No Recovery Time | 10 A | 1 Pair Common Cathode | |
 SMC Diode Solutions | 175 ░C | -55 C | 30 µA | 1.7 V | Through Hole | 0 ns | 1200 pF | 650 V | TO-220-2 | TO-220AC (TO-220-2) | SiC (Silicon Carbide) Schottky | No Recovery Time | ||
 SMC Diode Solutions | 175 ░C | -55 C | 20 µA | 1.7 V | Through Hole | 0 ns | 650 V | TO-220-3 | TO-220AB | SiC (Silicon Carbide) Schottky | No Recovery Time | 10 A | 1 Pair Common Cathode |
