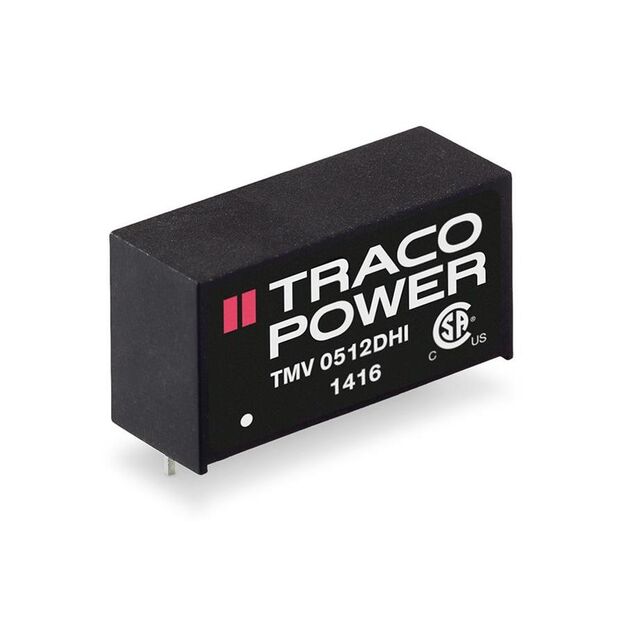

TMV 1509 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-9V 1W
| Part | Voltage - Input (Min) [Min] | Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Features | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output (Max) [Max] | Voltage - Output 1 | Number of Outputs | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 13.5 V | Isolated Module | 5.2 kV | 16.5 V | 7-SIP Module 5 Leads | SCP | -9 V | 95 °C | -40 °C | 75 % | 56 mA | 9 V | 2 | ITE (Commercial) | 19.5 mm | 0.77 in | 0.3 " | 7.5 mm | 10.2 mm | 0.4 " | Through Hole |
