Newer Device Available PIC10F322
Key Features
• Available in either SOT-23 or 2x3 DFN packagingPrecision 4 MHz internal oscillatorBaseline Core with 33 Instructions, 2 Stack LevelsAll single-cycle Instructions except for program branches which are two cycles12-bit wide instructions8-bit wide data pathComparator25 mA source/sink current I/OLow power (100nA) sleep currentOne 8-bit timer (TMR0)Watchdog timer (WDT)In Circuit Serial Programming™ (ICSP™) capabilityIn-Circuit debugging supportProgrammable code protection
•
• Available in either SOT-23 or 2x3 DFN packaging* Available in either SOT-23 or 2x3 DFN packaging
• * Precision 4 MHz internal oscillator
• * Baseline Core with 33 Instructions, 2 Stack Levels
• * All single-cycle Instructions except for program branches which are two cycles
• * 12-bit wide instructions
• * 8-bit wide data path
• * Comparator
• * 25 mA source/sink current I/O
• * Low power (100nA) sleep current
• * One 8-bit timer (TMR0)
• * Watchdog timer (WDT)
• * In Circuit Serial Programming™ (ICSP™) capability
• * In-Circuit debugging support
• * Programmable code protection
Description
AI

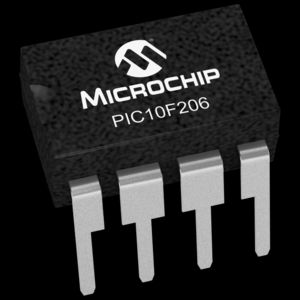

The PIC10F206 is a low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 µs) except for program branches, which take two cycles. It delivers performance in an order of magnitude higher than competitors in the same price category. The easy-to-use and easy to remember instruction set reduces development time significantly.
