NTLJS2103P Series

Single P-Channel µCool™ Power MOSFET -12V -7.7A 40mΩ

Catalog

Single P-Channel µCool™ Power MOSFET -12V -7.7A 40mΩ

Part	Vgs(th) (Max) @ Id	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Technology	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)

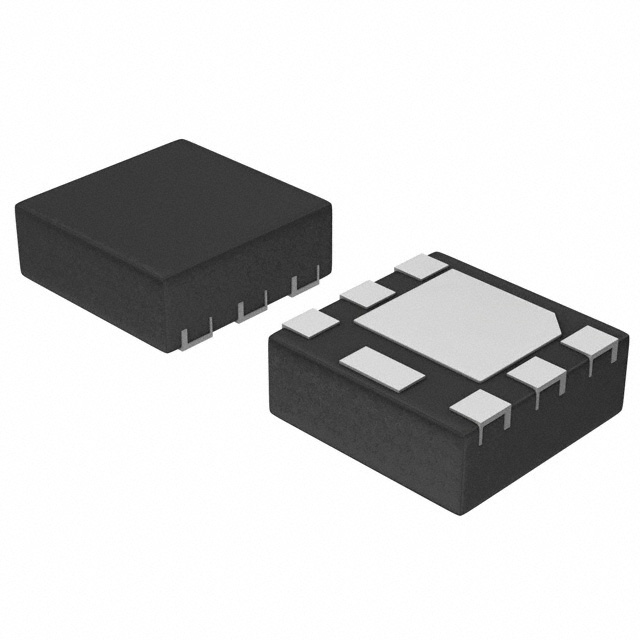

ON Semiconductor NTLJS2103PTAG	800 mV	6-WDFN (2x2)	15 nC	MOSFET (Metal Oxide)	700 mW	Surface Mount	3.5 A	1.2 V 4.5 V	8 V	-55 °C	150 °C	P-Channel	1157 pF	12 V
ON Semiconductor NTLJS2103PTBG	800 mV	6-WDFN (2x2)	15 nC	MOSFET (Metal Oxide)	700 mW	Surface Mount	3.5 A	1.2 V 4.5 V	8 V	-55 °C	150 °C	P-Channel	1157 pF	12 V

Single P-Channel µCool™ Power MOSFET -12V -7.7A 40mΩ

• Lowest RDS(on)Solution in 2x2 mm Package

• WDFN Package Provides Exposed Drain Pad

• 1.2 V RDS(on)Rating for Operation at Low Voltage Logic Level GateDrive

• Low Profile (< 0.8 mm) for Easy Fit in Thin Environments

• RoHS Compliant

-12 V, -7.7 A, µCool™ Single P-Channel, 2x2 mm, WDFN Package
