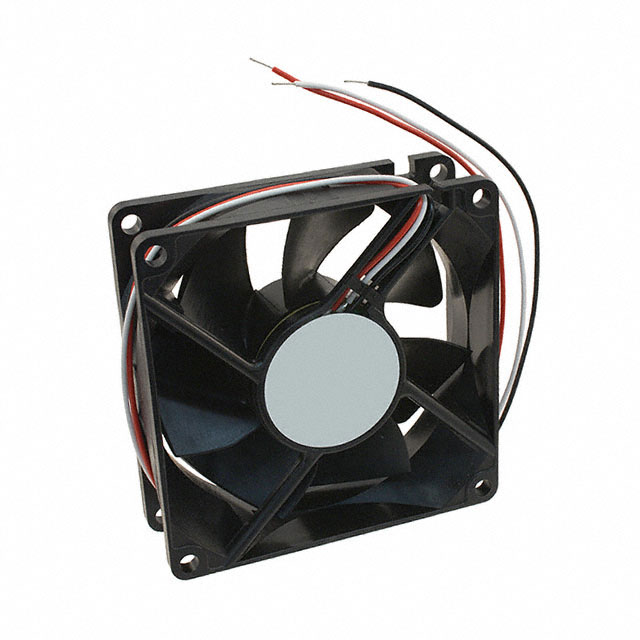

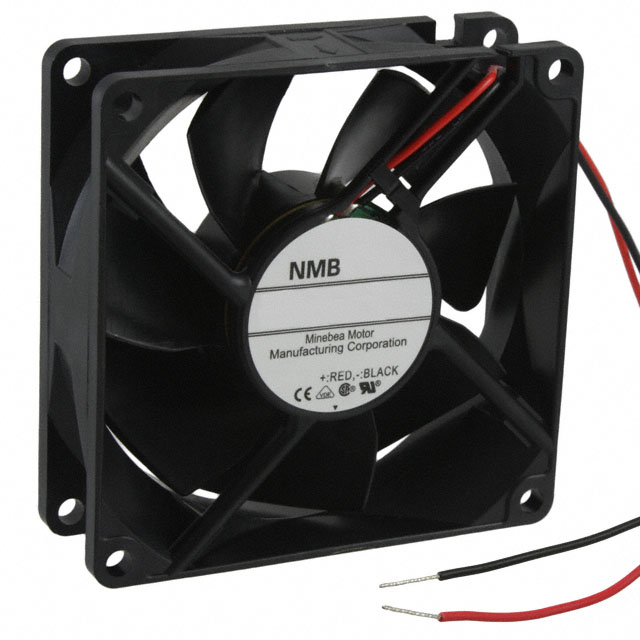

3110KL Series

Catalog

FAN AXIAL 80X25MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Bearing Type	Power (Watts)	Voltage - Rated	RPM	Width [y]	Noise	Termination	Approval Agency	Fan Type	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]	Features	Static Pressure	Static Pressure
NMB TECHNOLOGIES 3110KL-05W-B60-G00	10 VDC	26.4 VDC	Plastic	Plastic	70000 Hrs	140 mA	Ball	3.36 W	24 VDC	3400 RPM	25 mm	35 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.13 mł/min	40.2 CFM	70 °C	-10 °C
NMB TECHNOLOGIES 3110KL-04W-B79-D00	6 VDC	13.8 VDC	Plastic	Plastic	70000 Hrs	0.29 A	Ball	3.86 W	12 VDC	4000 RPM	25 mm	40 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.29 m³/min	45.9 CFM	60 °C	-10 °C	Locked Rotor Sensor	0.258 in H2O	64.4 Pa
NMB TECHNOLOGIES 3110KL-04W-B50-G00	6 VDC	13.8 VDC	Plastic	Plastic	70000 Hrs	0.23 A	Ball	2.76 W	12 VDC	3250 RPM	25 mm	34 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.09 m³/min	38.8 CFM	70 °C	-10 °C		0.149 in H2O	37.1 Pa
NMB TECHNOLOGIES 3110KL-05W-B30-D00	10 VDC	27.6 VDC	Plastic	Plastic	70000 Hrs		Ball	1.92 W	24 VDC	2700 RPM	25 mm	28 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	0.89 m³/min	31.8 CFM	70 °C	-10 °C		0.106 in H2O	26.4 Pa
NMB TECHNOLOGIES 3110KL-05W-B59-G00	10 VDC	27.6 VDC	Plastic	Plastic	70000 Hrs	120 mA	Ball	2.88 W	24 VDC	3250 RPM	25 mm	34 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.09 m³/min	38.8 CFM	70 °C	-10 °C	Locked Rotor Sensor	0.149 in H2O	37.1 Pa
NMB TECHNOLOGIES 3110KL-04W-B60-G00	6 VDC	13 V	Plastic	Plastic	70000 Hrs	0.26 A	Ball	3.12 W	12 VDC	3400 RPM	25 mm	35 dB	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.13 mł/min	40.2 CFM	70 °C	-10 °C
NMB TECHNOLOGIES 3110KL-05W-B40-D00	10 VDC	27.6 VDC	Plastic	Plastic	70000 Hrs	100 mA	Ball	2.4 W	24 VDC	3000 RPM	25 mm	31 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	0.988 mł/min	35.3 CFM	70 °C	-10 °C		0.129 in H2O	32.1 Pa
NMB TECHNOLOGIES 3110KL-05W-B49-G00	10 VDC	27.6 VDC	Plastic	Plastic	70000 Hrs	100 mA	Ball	2.4 W	24 VDC	3000 RPM	25 mm	31 dB(A)	3 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	0.988 mł/min	35.3 CFM	70 °C	-10 °C	Locked Rotor Sensor	0.129 in H2O	32.1 Pa
NMB TECHNOLOGIES 3110KL-04W-B20-G00	6 VDC	13.8 VDC	Plastic	Plastic	70000 Hrs	110 mA	Ball	1.32 W	12 VDC	2400 RPM	25 mm	25 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	0.79 mł/min	28.2 CFM	70 °C	-10 °C		0.087 in H2O	21.7 Pa
NMB TECHNOLOGIES 3110KL-04W-B50-D00	6 VDC	13.8 VDC	Plastic	Plastic	70000 Hrs	0.23 A	Ball	2.76 W	12 VDC	3250 RPM	25 mm	34 dB(A)	2 Wire Leads	CE CSA UL VDE	Tubeaxial	0.209 lb	94.8 g	80 mm	80 mm	1.09 m³/min	38.8 CFM	70 °C	-10 °C		0.149 in H2O	37.1 Pa
