505578 Series
Manufacturer: Molex
Beta
⌘K

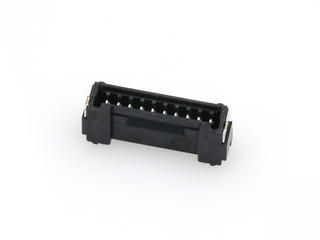

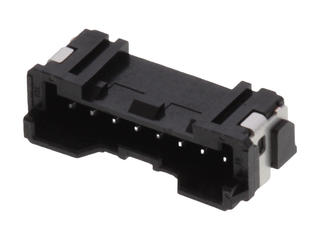

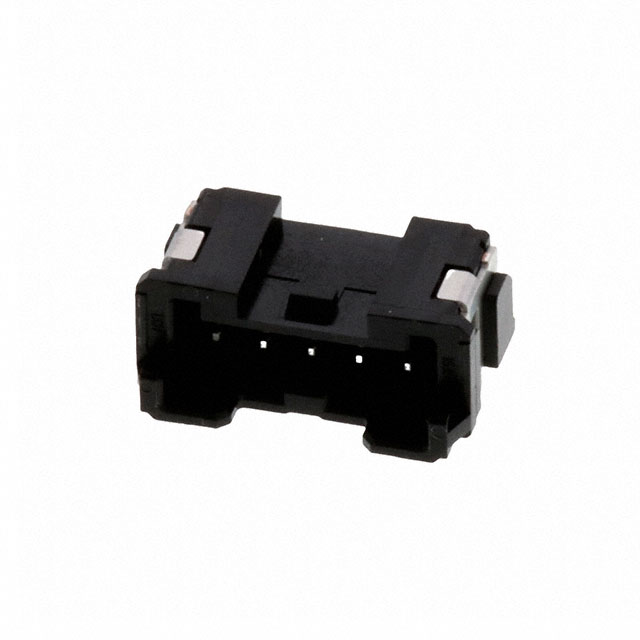

2.00MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, RIGHT-ANGLE, SURFACE MOUNT, MATTE TIN PLATING, POSITIVE LOCK, 5 CIRCUITS, LOW-HALOGEN, BLACK
| Part | Insulation Material | Voltage Rating | Termination | Contact Finish - Post | Material Flammability Rating | Style | Contact Material | Pitch - Mating [x] | Pitch - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Features | Contact Shape | Insulation Color | Mounting Type | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Rows | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Connector Type | Number of Positions | Number of Positions | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Black | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | |||
Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Natural | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 8 | ||
Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Natural | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 10 | ||
 Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Natural | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 6 | ||
Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Black | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 16 | ||
 Molex | Glass Filled Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Square | Natural | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | 0.38 µm | 15 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 7 | Gold | |||
Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Black | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 15 | ||
Molex | Glass Filled Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Square | Black | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | 0.1 µm | 3.94 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 4 | Gold | |||
 Molex | Nylon Polyamide (PA) | 250 VAC | Solder | Tin | UL94 V-0 | Board to Cable/Wire | Brass | 0.079 in | 2 mm | -40 °C | 105 ░C | Locking Ramp | Solder Retention | Rectangular | Black | Surface Mount Right Angle | 5.9 mm | 0.232 in | Varies by Wire Gauge | 1 | Automotive General Purpose Industrial | 1 µm | 39.4 µin | Shrouded - 4 Wall | Male Pin | 1 çm | 39.4 çin | All | Header | 8 | ||
