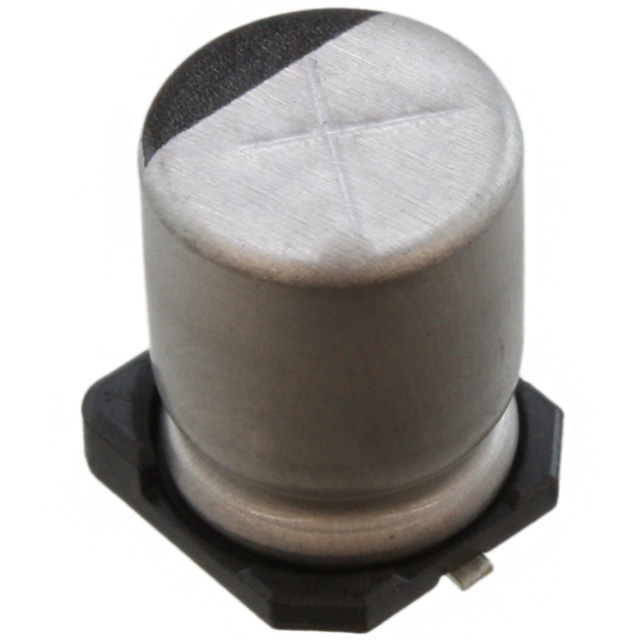

UUX Series

Manufacturer: Nichicon

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 220 ΜF, 25 V, 2000 HOURS @ 85°C, POLAR

Part	Package / Case	Polarization	Voltage - Rated	Mounting Type	Ripple Current @ High Frequency	Applications	Ratings	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Capacitance
Nichicon UUX1E221MNL1GS	Radial Can - SMD	Polar	25 VDC	Surface Mount	456.3 mA	General Purpose	AEC-Q200	20 %	0.413 "	10.5 mm	351 mA	0.394 in	10 mm	-55 C	105 ░C	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	220 µF
Nichicon UUX2G4R7MNL1GS	Radial Can - SMD	Polar	400 V	Surface Mount		General Purpose	AEC-Q200	20 %	0.413 "	10.5 mm	40 mA	0.394 in	10 mm	-40 C	105 ░C	3000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	4.7 µF
Nichicon UUX1H221MNL1GS
Nichicon UUX1C221MNL1GS	Radial Can - SMD	Polar	16 V	Surface Mount	399.1 mA	General Purpose	AEC-Q200	20 %	0.413 "	10.5 mm	330 mA	0.394 in	10 mm	-55 C	105 ░C	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	220 µF
Nichicon UUX2A220MNL6GS	Radial Can - SMD	Polar	100 V	Surface Mount	202.07 mA	General Purpose	AEC-Q200	20 %	0.413 "	10.5 mm	121 mA	0.315 in	8 mm	-55 C	105 ░C	2000 Hrs	0.327 in	0.327 in	8.3 mm	8.3 mm	22 µF
Nichicon UUX1V101MNL1GS	Radial Can - SMD	Polar	35 V	Surface Mount	395.2 mA	General Purpose	AEC-Q200	20 %	0.413 "	10.5 mm	304 mA	0.394 in	10 mm	-55 C	105 ░C	2000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	100 µF
Nichicon UUX1H101MNQ1GS
