PL-05-3 Series

Catalog

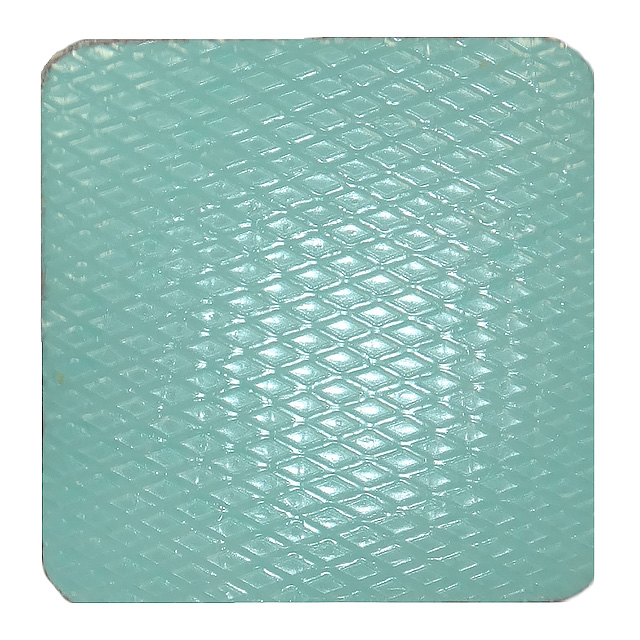

THERM PAD 101.6MMX101.6MM GREEN

Part	Outline [y]	Outline [x]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Color	Type	Shelf Life	Thermal Conductivity	Shape	Thickness	Thickness	Adhesive
Wakefield Thermal Solutions PL-05-3-1016	101.6 mm	101.6 mm	35 °C	95 °F	Green	Gap Filler Pad Sheet	36 Months	3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - Both Sides
Wakefield Thermal Solutions PL-05-3-1016-H	101.6 mm	101.6 mm	35 °C	95 °F	Green	Gap Filler Pad Sheet	36 Months	3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - One Side
Wakefield Thermal Solutions PL-05-3-254-H	25.4 mm	25.4 mm			Green	Gap Filler Pad Sheet		3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - One Side
Wakefield Thermal Solutions PL-05-3-254	25.4 mm	25.4 mm			Green	Gap Filler Pad Sheet		3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - Both Sides
Wakefield Thermal Solutions PL-05-3-1016-H	101.6 mm	101.6 mm			Green	Gap Filler Pad Sheet		3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - One Side
Wakefield Thermal Solutions PL-05-3-1016	101.6 mm	101.6 mm			Green	Gap Filler Pad Sheet		3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - Both Sides
Wakefield Thermal Solutions PL-05-3-254	25.4 mm	25.4 mm	35 °C	95 °F	Green	Gap Filler Pad Sheet	36 Months	3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - Both Sides
Wakefield Thermal Solutions PL-05-3-254-H	25.4 mm	25.4 mm	35 °C	95 °F	Green	Gap Filler Pad Sheet	36 Months	3 W/m-K	Square	0.0197 "	0.5 mm	Tacky - One Side
