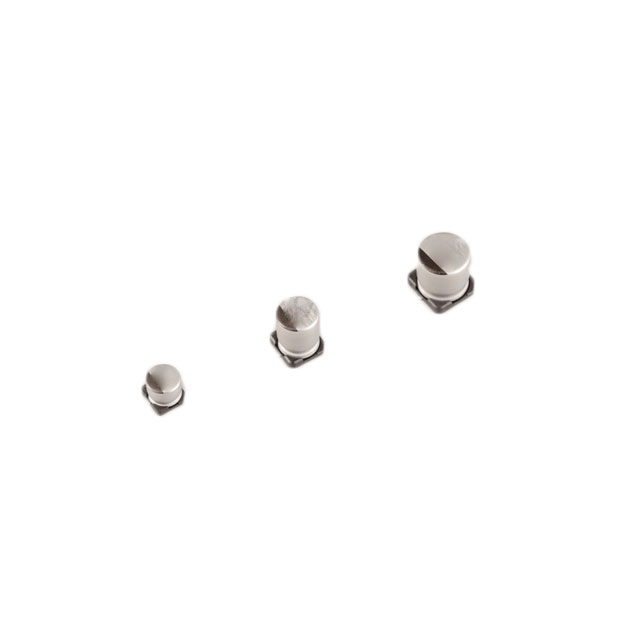

GYC Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 50VDC 47UF 20% VIBRATION RESISTANCE AEC-Q200

Part	Voltage - Rated	Mounting Type	ESR (Equivalent Series Resistance)	Tolerance	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Capacitance	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features
Nichicon GYC1H470MCW1GS	50 VDC	Surface Mount	30 mOhms	20 %	AEC-Q200	-55 C	135 °C	330 mA	4000 Hrs	0.413 "	10.5 mm	Radial Can - SMD	47 µF	Hybrid	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm	2.2 A	Automotive
Nichicon GYC1J470MCQ1GS	63 V	Surface Mount	40 mOhm	20 %	AEC-Q200	-55 C	135 °C		4000 Hrs	0.413 "	10.5 mm	Radial Can - SMD	47 µF	Hybrid	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm		Automotive
Nichicon GYC1C471MCW1GS	16 V	Surface Mount	20 mOhms	20 %	AEC-Q200	-55 C	135 °C	510 mA	4000 Hrs	0.413 "	10.5 mm	Radial Can - SMD	470 µF	Hybrid	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	3.4 A	Automotive
Nichicon GYC1V151MCQ1GS	35 V	Surface Mount	27 mOhms	20 %	AEC-Q200	-55 C	135 °C	435 mA	4000 Hrs	0.413 "	10.5 mm	Radial Can - SMD	150 µF	Hybrid	8.3 mm	8.3 mm	0.327 in	0.327 in	0.315 in	8 mm	2.9 A	Automotive
Nichicon GYC1E560MCQ1GS	25 VDC	Surface Mount	50 mOhms	20 %	AEC-Q200	-55 C	135 °C	210 mA	2000 Hrs			Radial Can - SMD	56 µF	Hybrid	6.6 mm	6.6 mm	0.26 in	0.26 in	0.248 "	6.3 mm	1.4 A	Automotive	6.1 mm	0.24 "
Nichicon GYC1H221MNZ1GS	50 VDC	Surface Mount	14 mOhms	20 %	AEC-Q200	-55 C	135 °C	645 mA	4000 Hrs		17 mm	Radial Can - SMD	220 µF	Hybrid	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	4.3 A	Automotive		0.669 "	High Vibration
Nichicon GYC1V331MCW1GS	35 V	Surface Mount	16 mOhm	20 %	AEC-Q200	-55 C	135 °C	525 mA	4000 Hrs			Radial Can - SMD	330 µF	Hybrid	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	3.5 A	Automotive	13 mm	0.512 "
Nichicon GYC1V221MCW1GS	35 V	Surface Mount	20 mOhms	20 %	AEC-Q200	-55 C	135 °C	495 mA	4000 Hrs	0.413 "	10.5 mm	Radial Can - SMD	220 µF	Hybrid	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	3.3 A	Automotive
Nichicon GYC1J560MCW1GS	63 V	Surface Mount	30 mOhms	20 %	AEC-Q200	-55 C	135 °C	345 mA	4000 Hrs			Radial Can - SMD	56 µF	Hybrid	10.3 mm	10.3 mm	0.406 "	0.406 in	0.394 in	10 mm	2.3 A	Automotive	11 mm	0.433 in
Nichicon GYC1C151MCW1GS	16 V	Surface Mount	30 mOhms	20 %	AEC-Q200	-55 C	135 °C	300 mA	2000 Hrs			Radial Can - SMD	150 µF	Hybrid	6.6 mm	6.6 mm	0.26 in	0.26 in	0.248 "	6.3 mm	2 A	Automotive	8.2 mm	0.323 in
