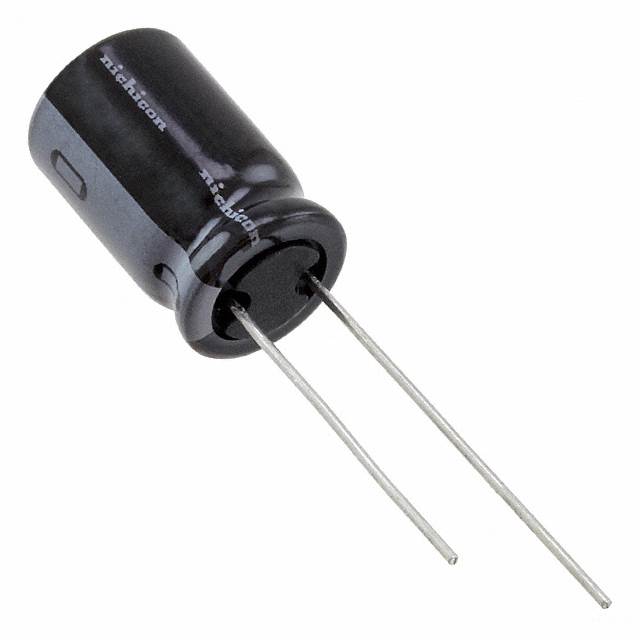

UHV Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Applications	Polarization	Impedance	Capacitance	Package / Case	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Voltage - Rated	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UHV1E561MPD1TA	General Purpose	Polar	31 mOhms	560 µF	Can Radial	6000 Hrs	0.315 in	8 mm	1.55 A	0.138 in	3.5 mm	775 mA	0.866 in	22 mm	25 VDC	20 %	-40 C	105 ░C	Through Hole
Nichicon UHV1V152MHD	General Purpose	Polar	12 mOhms	1.5 mF	Can Radial	6000 Hrs	0.492 in	12.5 mm	3.795 A	0.197 "	5 mm	2.277 A			35 V	20 %	-40 C	105 ░C	Through Hole	1.319 in	33.5 mm
Nichicon UHV1A222MPD1TD	General Purpose	Polar	17 mOhms	2200 µF	Can Radial	6000 Hrs	0.394 in	10 mm	2.475 A	0.197 "	5 mm	2.2275 A			10 V	20 %	-40 C	105 ░C	Through Hole			1.063 in	27 mm
Nichicon UHV1C681MPD6TD	General Purpose	Polar	46 mOhms	680 µF	Can Radial	6000 Hrs	0.315 in	8 mm		0.138 in	3.5 mm	798 mA			16 V	20 %	-40 C	105 ░C	Through Hole	0.65 in				16.5 mm
Nichicon UHV1C331MPD1TA	General Purpose	Polar	59 mOhms	330 µF	Can Radial	6000 Hrs	0.315 in	8 mm		0.138 in	3.5 mm	415 mA			16 V	20 %	-40 C	105 ░C	Through Hole	0.512 "				13 mm
Nichicon UHV1V271MPD1TA	General Purpose	Polar	46 mOhms	270 µF	Can Radial	6000 Hrs	0.315 in	8 mm		0.138 in	3.5 mm	665 mA			35 V	20 %	-40 C	105 ░C	Through Hole	0.65 in				16.5 mm
Nichicon UHV1E102MPD	General Purpose	Polar	17 mOhms	1000 µF	Can Radial	6000 Hrs	0.394 in	10 mm	2.475 A	0.197 "	5 mm	1.485 A			25 VDC	20 %	-40 C	105 ░C	Through Hole			1.063 in	27 mm
Nichicon UHV1C182MPD1TD	General Purpose	Polar	17 mOhms	1800 µF	Can Radial	6000 Hrs	0.394 in	10 mm	2.475 A	0.197 "	5 mm	1.485 A			16 V	20 %	-40 C	105 ░C	Through Hole			1.063 in	27 mm
Nichicon UHV1V331MPD1TD	General Purpose	Polar	43 mOhms	330 µF	Can Radial	6000 Hrs	0.394 in	10 mm	2.475 A	0.197 "	5 mm	680 mA			35 V	20 %	-40 C	105 ░C	Through Hole			0.551 in	14 mm
Nichicon UHV1V221MPD1TD	General Purpose	Polar	59 mOhms	220 µF	Can Radial	6000 Hrs	0.315 in	8 mm	990 mA	0.138 in	3.5 mm	495 mA			35 V	20 %	-40 C	105 ░C	Through Hole	0.512 "				13 mm
