UWF Series
Manufacturer: Nichicon
Beta
⌘K

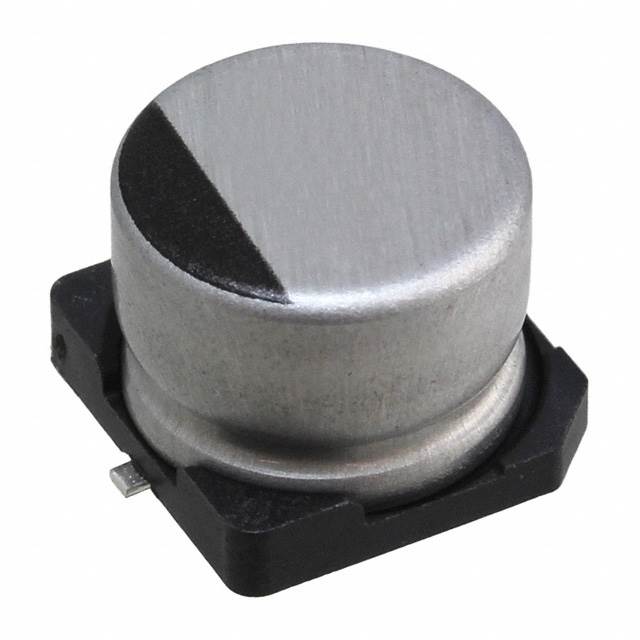

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 6.3VOLTS 220UF AEC-Q200
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Package / Case | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Tolerance | Ripple Current @ High Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Applications | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Rated | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Surface Mount | -55 C | 105 ░C | 800 mOhm | Radial Can - SMD | 75 mA | 0.315 in | 8 mm | 220 µF | 20 % | 150 mA | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | General Purpose | 6.5 mm | 0.256 in | 6.3 VDC | 1000 Hrs |
