EXH2E Series

Manufacturer: Nichicon

Catalog

CAP FILM 7UF -5% +10% 250VAC RAD

Part	Capacitance	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Package / Case	Voltage Rating - AC	Tolerance [Max]	Tolerance [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

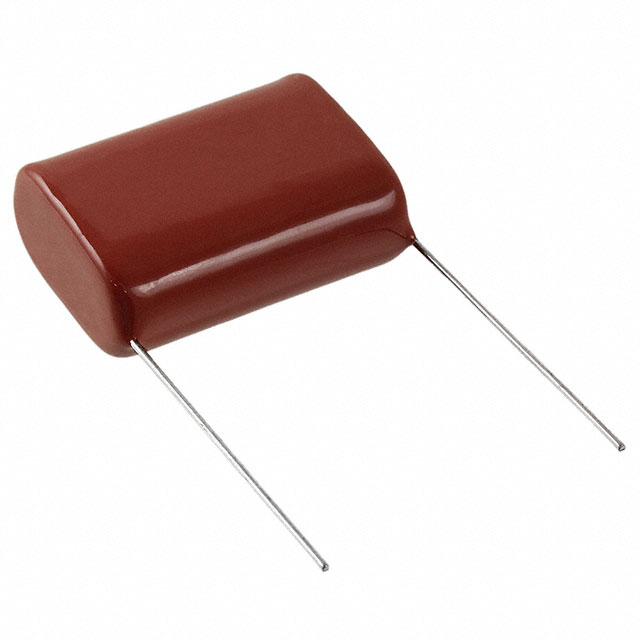

Nichicon EXH2E705HRPT	7 µF	PC Pins	85 °C	-25 °C	Motor Run	1.083 in	27.5 mm	Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	36 mm	1.417 in	0.571 "	14.5 mm	1.28 in	32.5 mm

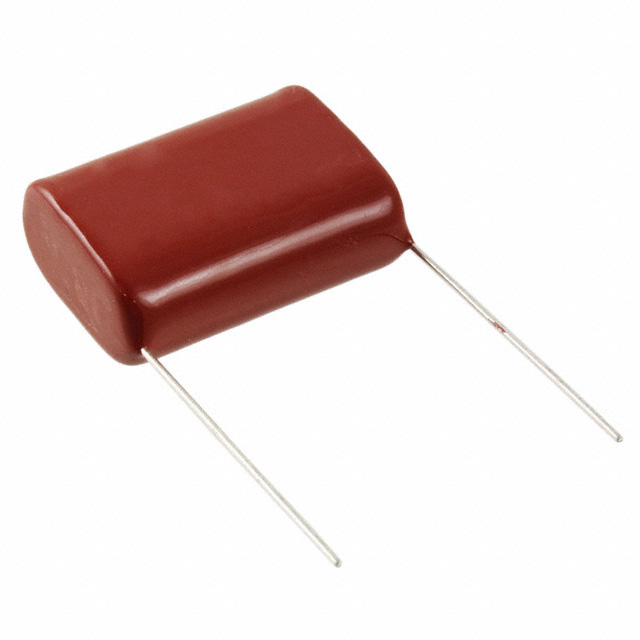

Nichicon EXH2E106HRPT	10 µF	PC Pins	85 °C	-25 °C	Motor Run	1.201 in	30.5 mm	Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	36 mm	1.417 in	0.689 in	17.5 mm	1.28 in	32.5 mm

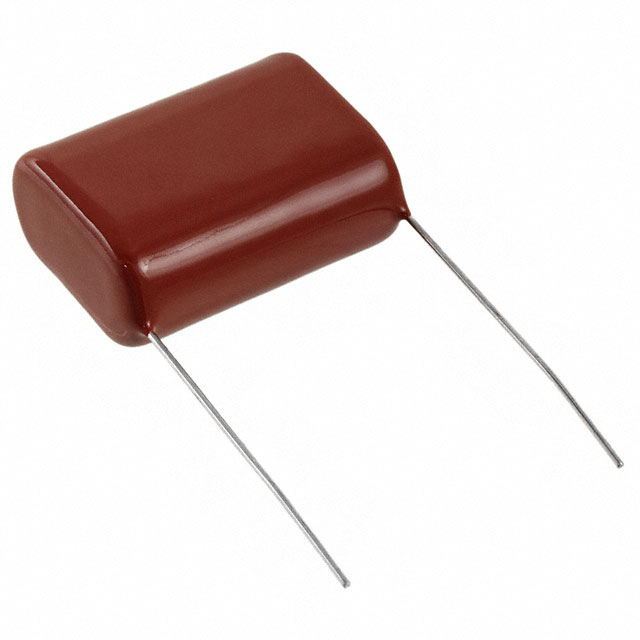

Nichicon EXH2E805HRPT	8 µF	PC Pins	85 °C	-25 °C	Motor Run			Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	36 mm	1.417 in	0.61 in	15.5 mm	1.28 in	32.5 mm

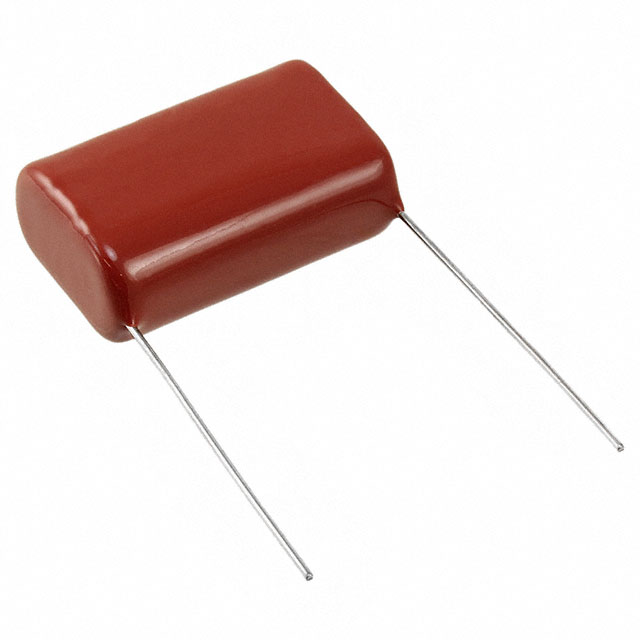

Nichicon EXH2E605HRPT	6 µF	PC Pins	85 °C	-25 °C	Motor Run	1.004 in	25.5 mm	Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	1.417 in 36 mm			0.551 " 14 mm	1.28 in	32.5 mm

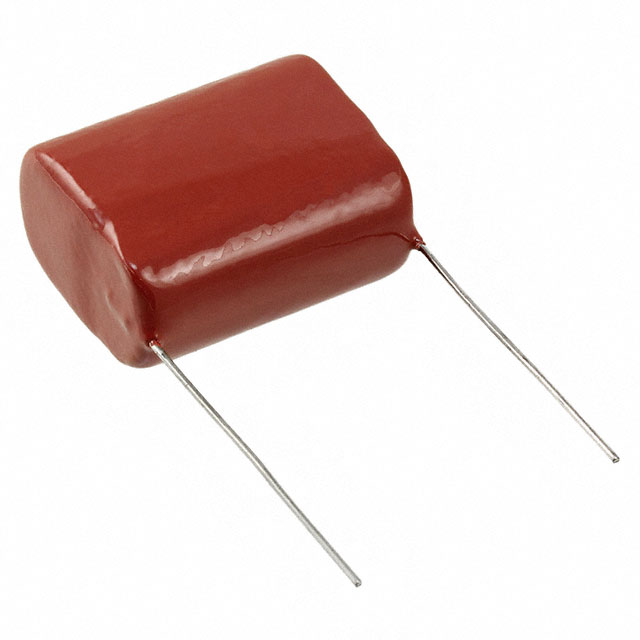

Nichicon EXH2E126HRPT	12 µF	PC Pins	85 °C	-25 °C	Motor Run			Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	36 mm	1.417 in	0.728 in	18.5 mm	1.28 in	32.5 mm	1.24 in	31.5 mm

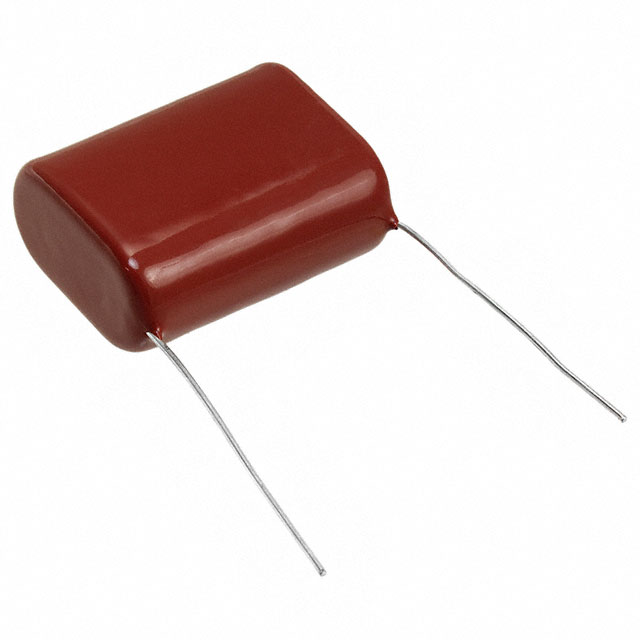

Nichicon EXH2E905HRPT	9 µF	PC Pins	85 °C	-25 °C	Motor Run			Polypropylene (PP) Metallized	Radial	250 V	10 %	-5 %	Through Hole	36 mm	1.417 in	0.65 "	16.5 mm	1.28 in	32.5 mm		1.161 in	29.5 mm
