470037CY Series

Catalog

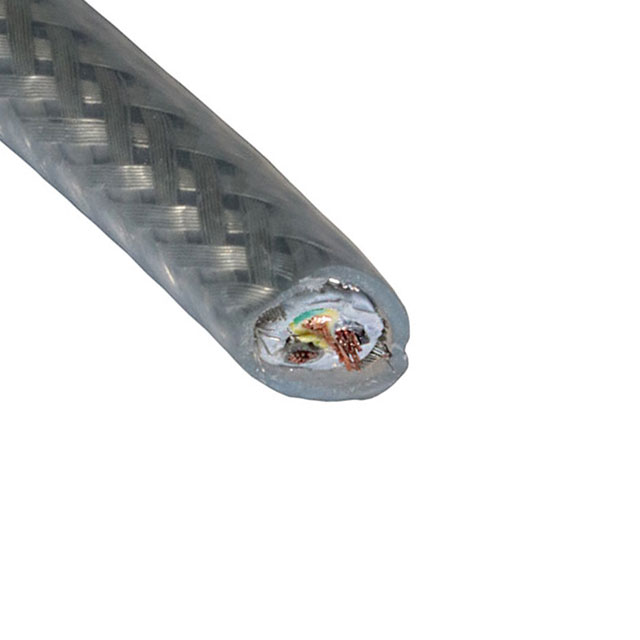

MULTICONDUCTOR CABLE, PRO-MET®, CY CONTROL, SHIELDED, 3 CONDUCTOR, 19 AWG, 0.75 MM², 164 FT, 50 M

Part	Cable Type	Wire Gauge	Conductor Material	Shield Coverage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [diameter]	Conductor Insulation	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Length	Length	Jacket Color	Spool Size	Spool Size	Length [x]	Length [x]	Length
ALPHA WIRE 470037CY GE321	Multi-Conductor	19 AWG	Copper Bare	80 %	Poly-Vinyl Chloride (PVC)	30	0.007 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	7.95 mm	0.313 in	3	300 VDC	80 °C	-40 C	Industrial	Braid	0.0335 "	0.851 mm	Copper Tinned	50 m	164 ft	Gray
ALPHA WIRE 470037CY CL432	Multi-Conductor	19 AWG	Copper Bare	80 %	Poly-Vinyl Chloride (PVC)	30	0.007 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	7.95 mm	0.313 in	3	300 VDC	80 °C	-40 C	Industrial	Braid	0.0335 "	0.851 mm	Copper Tinned	1 m 10 m 20 m	3.28 ft 32.81 ft 65.62 ft	Clear	984.3 ft	300 m	98.43 ft	30 m	Enter Number of Meters in Order Quantity
ALPHA WIRE 470037CY CL321	Multi-Conductor	19 AWG	Copper Bare	80 %	Poly-Vinyl Chloride (PVC)	30	0.007 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	7.95 mm	0.313 in	3	300 VDC	80 °C	-40 C	Industrial	Braid	0.0335 "	0.851 mm	Copper Tinned	50 m	164 ft	Clear
ALPHA WIRE 470037CY GE432	Multi-Conductor	19 AWG	Copper Bare	80 %	Poly-Vinyl Chloride (PVC)	30	0.007 in	Poly-Vinyl Chloride (PVC)	Chemical Resistant Oil Resistant UV Resistant	7.95 mm	0.313 in	3	300 VDC	80 °C	-40 C	Industrial	Braid	0.0335 "	0.851 mm	Copper Tinned			Gray	984.3 ft	300 m	98.43 ft 984.3 ft	30 m 300 m	Enter Number of Meters in Order Quantity
