upj Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, LOW IMPEDANCE, 2200 ΜF, 16 V, ± 20%, PC PIN, POLAR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Impedance	Lifetime @ Temp.	Tolerance	Lead Spacing	Lead Spacing	Applications	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Height - Seated (Max) [Max] [z]

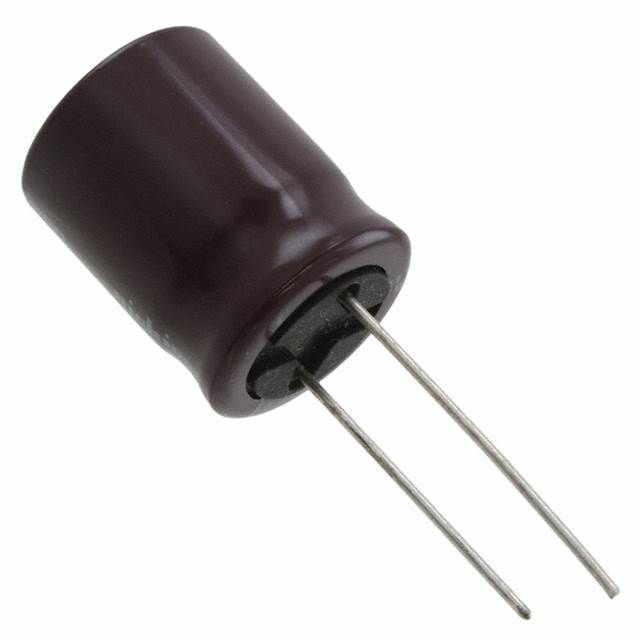

Nichicon UPJ1C222MHD6	-55 C	105 ░C	16 V	48 mOhms	5000 Hrs	20 %	0.295 in	7.5 mm	General Purpose	Through Hole	0.63 in	16 mm	2200 µF	1.8 A	Can Radial	0.846 "	21.5 mm	1.62 A	Polar

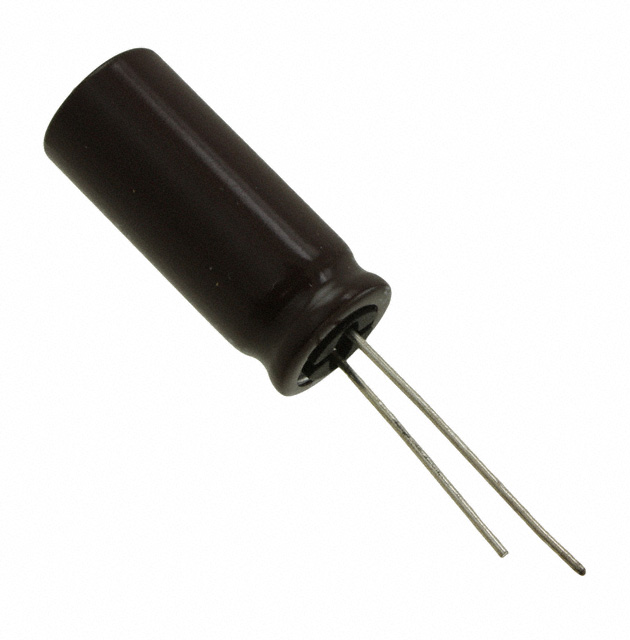

Nichicon UPJ1C182MHD	-55 C	105 ░C	16 V	39 mOhms	5000 Hrs	20 %	0.197 "	5 mm	General Purpose	Through Hole	0.492 in	12.5 mm	1800 µF	1.88 A	Can Radial			1.69 A	Polar	1.299 in	33 mm
Nichicon UPJ1E102MHD	-55 C	105 ░C	25 VDC	48 mOhms	5000 Hrs	20 %	0.197 "	5 mm	General Purpose	Through Hole	0.492 in	12.5 mm	1000 µF	1.66 A	Can Radial			1.43 A	Polar	26.5 mm		1.043 in
