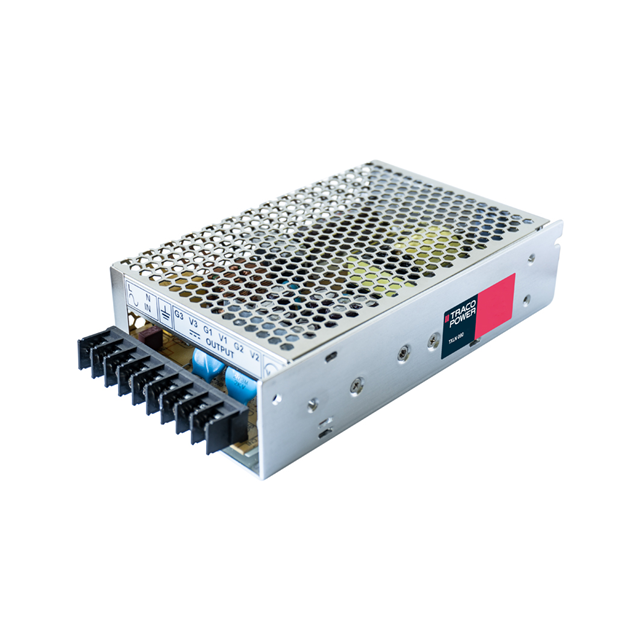

TXLN 080 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY TRIPLE-OUT 5V/12V/-12V 8A/4A/1A 80W 9-PIN
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Minimum Load Required | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Isolation | Approval Agency | Features | Number of Outputs | Applications | Efficiency | Voltage - Output 3 | Voltage - Output 2 | Current - Output 1 | Power (Watts) | Standard Number | Voltage - Output 1 | Current - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 264 VAC 375 VDC | 88 VAC 125 VDC | Chassis Mount | -20 °C | 70 °C | Enclosed | 159 mm | 1.5 " | 6.26 in | 38 mm | 3.74 " | 95 mm | 3000 V | CB CE cURus | Adjustable Output Universal Input | 3 | ITE (Commercial) | 80 % | -12 V | 12 V | 8 A | 94 W | 62368-1 | 5 V | 3.5 A | |
 Traco Power | 264 VAC 375 VDC | 88 VAC 125 VDC | Chassis Mount | -20 °C | 70 °C | Enclosed | 159 mm | 1.5 " | 6.26 in | 38 mm | 3.74 " | 95 mm | 3000 V | CB CE cURus | Adjustable Output Universal Input | 3 | ITE (Commercial) | 79 % | 24 V | 12 V | 8 A | 112 W | 62368-1 | 5 V | 4 A | |
Traco Power | 264 VAC 375 VDC | 88 VAC 125 VDC | Chassis Mount | -20 °C | 70 °C | Enclosed | 159 mm | 1.5 " | 6.26 in | 38 mm | 3.74 " | 95 mm | 3000 V | CB CE cURus | Adjustable Output Universal Input | 2 | ITE (Commercial) | 80 % | 24 V | 9 A | 93 W | 62368-1 | 5 V | 2 A | ||
Traco Power | 264 VAC 375 VDC | 88 VAC 125 VDC | Chassis Mount | -20 °C | 70 °C | Enclosed | 159 mm | 1.5 " | 6.26 in | 38 mm | 3.74 " | 95 mm | 3000 V | CB CE cURus | Adjustable Output Universal Input | 2 | ITE (Commercial) | 79 % | 12 V | 9 A | 93 W | 62368-1 | 5 V | 4 A |
