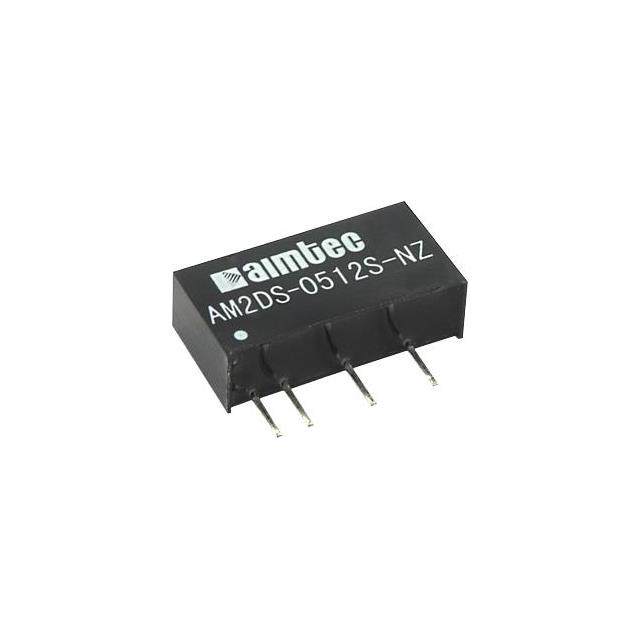

AM2DS Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 12V 2W

Part	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Isolation	Voltage - Output 1	Voltage - Output 2	Supplier Device Package	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
aimtec AM2DS-0512SH30-NZ	1	84 %	4.5 V	ITE (Commercial)	10 mm	0.27 in	0.39 "	0.77 in	7 mm	19.6 mm	167 mA	Isolated Module	-40 C	105 ░C	Through Hole	2 W	7-SIP Module	5.5 V	cULus cURus	3000 V	12 V
aimtec AM2DS-051509DH52Z	2	83 %	4.5 V	ITE (Commercial)		0.28 in	0.37 in	0.76 "		19.5 mm		Isolated Module	-40 °C	95 °C	Through Hole	2 W	7-SIP Module 5 Leads	5.5 V	CE	5.2 kV	15 V	-9 V	7-SIP	9.5 mm	7.2 mm	67 mA 111 mA
aimtec AM2DS-2415DH52Z	2		21.6 V	ITE (Commercial)		0.28 in	0.37 in	0.76 "		19.5 mm		Isolated Module	-40 °C	95 °C	Through Hole	2 W	7-SIP Module 5 Leads	26.4 V	CE	5.2 kV	15 V	-15 V	7-SIP	9.5 mm	7.2 mm	67 mA	67 mA
aimtec AM2DS-1212DH30-NZ	2	85 %	10.8 V	ITE (Commercial)	10.5 mm	0.28 in	0.41 in	0.77 in	7 mm	19.6 mm		Isolated Module	-40 C	105 ░C	Through Hole	2 W	7-SIP Module	13.2 V	cULus cURus	3000 V		-12 V				83 mA	83 mA	-12 V	12 V
aimtec AM2DS-0524S-NZ	1	84 %	4.5 V	ITE (Commercial)	10 mm	0.27 in	0.39 "	0.77 in	7 mm	19.6 mm	83 mA	Isolated Module	-40 C	105 ░C	Through Hole	2 W	7-SIP Module	5.5 V	cULus cURus	1.5 kV	24 V
