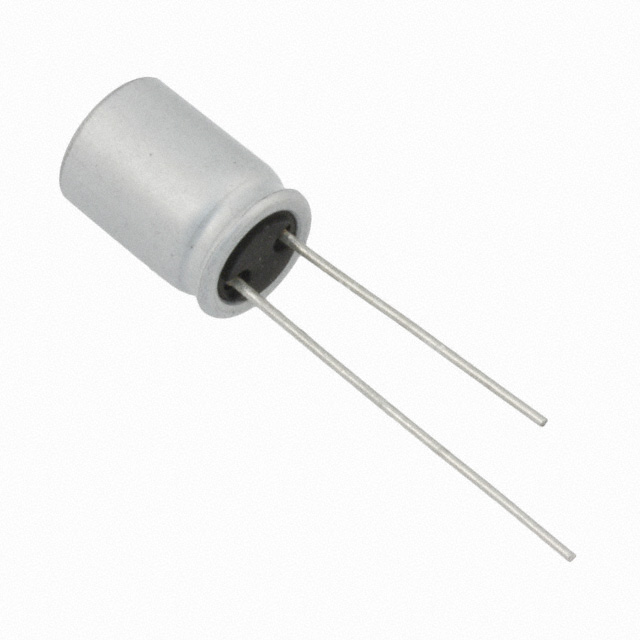

RR7 Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS
| Part | Ripple Current @ Low Frequency | Mounting Type | Type | Lifetime @ Temp. | Ripple Current @ High Frequency | Lead Spacing | Lead Spacing | Package / Case | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Applications | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 560 mA | Through Hole | Polymer | 2000 Hrs | 5.6 A | 0.138 in | 3.5 mm | Can Radial | 20 % | 0.512 " | 13 mm | 16 V | 0.315 in | 8 mm | -55 C | 105 ░C | 7 mOhms | General Purpose | 68 µF |
Nichicon | 560 mA | Through Hole | Polymer | 2000 Hrs | 5.6 A | 0.138 in | 3.5 mm | Can Radial | 20 % | 0.512 " | 13 mm | 16 V | 0.315 in | 8 mm | -55 C | 105 ░C | 7 mOhms | General Purpose | 100 µF |
Nichicon | 560 mA | Through Hole | Polymer | 2000 Hrs | 5.6 A | 0.138 in | 3.5 mm | Can Radial | 20 % | 0.512 " | 13 mm | 10 V | 0.315 in | 8 mm | -55 C | 105 ░C | 7 mOhms | General Purpose | 100 µF |
 Nichicon | 560 mA | Through Hole | Polymer | 2000 Hrs | 5.6 A | 0.138 in | 3.5 mm | Can Radial | 20 % | 0.512 " | 13 mm | 6.3 VDC | 0.315 in | 8 mm | -55 C | 105 ░C | 7 mOhms | General Purpose | 390 µF |
