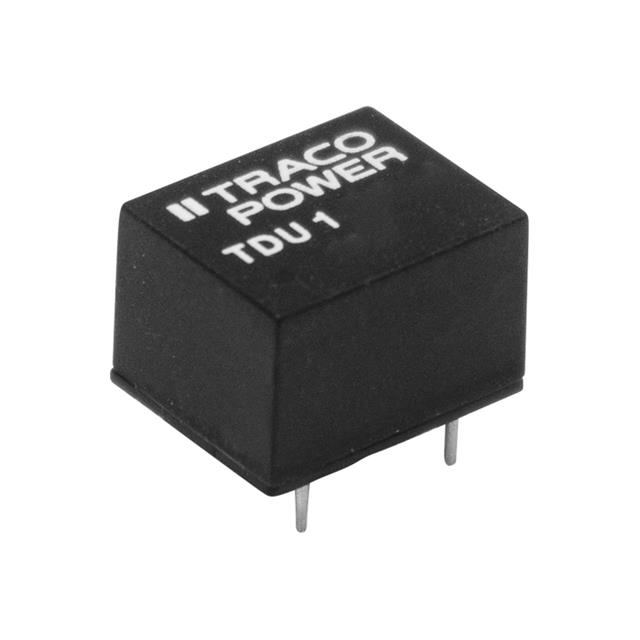

TDU 1 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 4.5-5.5VIN 5V 200MA DIP-8 UNREGULATED
| Part | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Mounting Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Voltage - Output 1 | Number of Outputs | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 200 mA | 4.5 V | 7.9 mm | 0.4 " | 0.5 " | 0.31 " | 12.7 mm | 10.2 mm | 80 % | Through Hole | 1800 V | 5.5 V | 5 V | 1 | ITE (Commercial) | 85 °C | -40 C | Isolated Module | 7-DIP Module 4 Leads |
