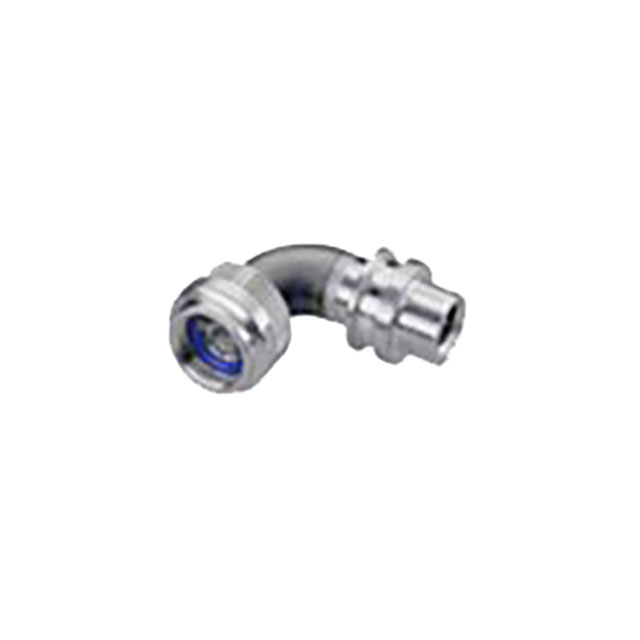

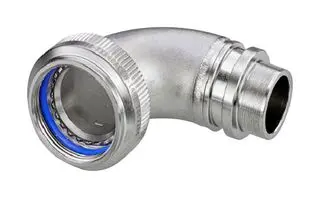

Tinel Ring Swept Elbow Backshells Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CIRCULAR CONNECTOR CLAMP, TINEL RING SWEPT ELBOW, 10, 7.92 MM, ALUMINUM, TXR SERIES
| Part | For Use With/Related Products | Includes | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Plating | Color | Thread Size | Features | Cable Opening | Cable Opening | Shell Size - Insert | Material | Shielding | Ingress Protection | Type | Diameter - Outside [diameter] | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 Braid 1 Tinel Ring | 90° | 21 mm | 0.827 in | Cadmium | Olive Drab | M15x1 | Tinel Lock | 0.312 in | 7.92 mm | 11 | Aluminum | Shielded | Environment Resistant | Backshell Heat Shrink Adapter | ||
 TE Connectivity AMP Connectors | ||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 Braid 1 Tinel Ring | 90° | 0.965 in | Cadmium | Olive Drab | M18x1 | Tinel Lock | 0.437 in | 11.1 mm | Aluminum | Shielded | Environment Resistant | Backshell Heat Shrink Adapter | 24.5 mm | 13 | ||
TE Connectivity AMP Connectors | ||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||
 TE Connectivity AMP Connectors | MIL-DTL-38999 Series III IV | 1 Backshell 1 Braid 1 Tinel Ring | 90° | 32.5 mm | 1.28 in | Cadmium | Olive Drab | M25x1 | Tinel Lock | 0.625 in | 15.88 mm | 17 | Aluminum | Shielded | Environment Resistant | Backshell Heat Shrink Adapter | ||
TE Connectivity AMP Connectors | 90° | 43.5 mm | 1.713 in | Cadmium | Olive Drab | M37x1 | Tinel Lock | 1 in | 25.4 mm | 25 | Aluminum | Shielded | Environment Resistant | Backshell Heat Shrink Adapter |
