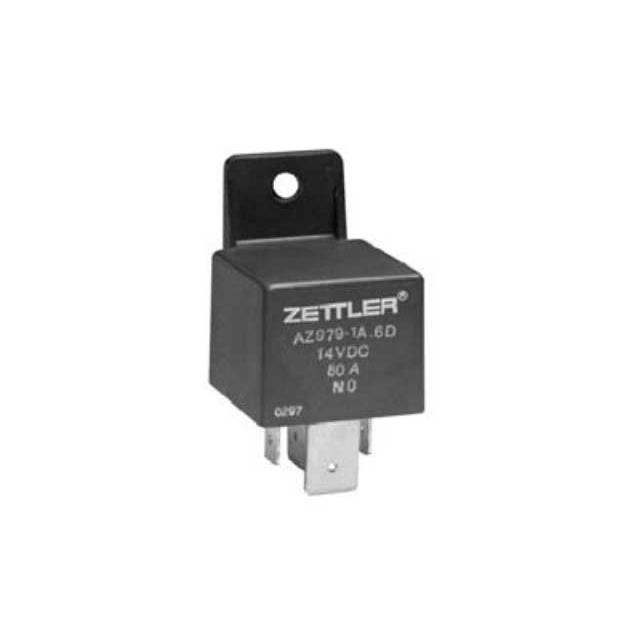

AZ979 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Contact Form | Termination Style | Operate Time | Contact Rating (Current) | Coil Type | Must Operate Voltage | Mounting Type | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Coil Current | Must Release Voltage | Features | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | SPST-NO (1 Form A) | Plug In Quick Connect | 7 ms | 80 A | Non Latching | 7.8 VDC | Chassis Mount | 12 VDC | 85 °C | -40 C | 5 ms | 133.3 mA | 1.2 VDC | Sealed - Epoxy SUPER-ISO w/ Plastic Mounting Bracket | 30 VDC |
American Zettler | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | SPDT (1 Form C) | Plug In Quick Connect | 7 ms | 60 A | Non Latching | 7.8 VDC | Chassis Mount | 12 VDC | 85 °C | -40 C | 5 ms | 133.3 mA | 1.2 VDC | Sealed - Epoxy SUPER-ISO w/ Plastic Mounting Bracket | 30 VDC |
