JR21RK Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT FMALE 10P SOLDER CUP
| Part | Contact Finish - Mating | Current Rating (Amps) | Orientation | Shell Material | Mounting Type | Primary Material | Cable Opening | Cable Opening | Color | Insert Material | Material Flammability Rating | Connector Type | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Mounting Feature | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [custom] | Shielding | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

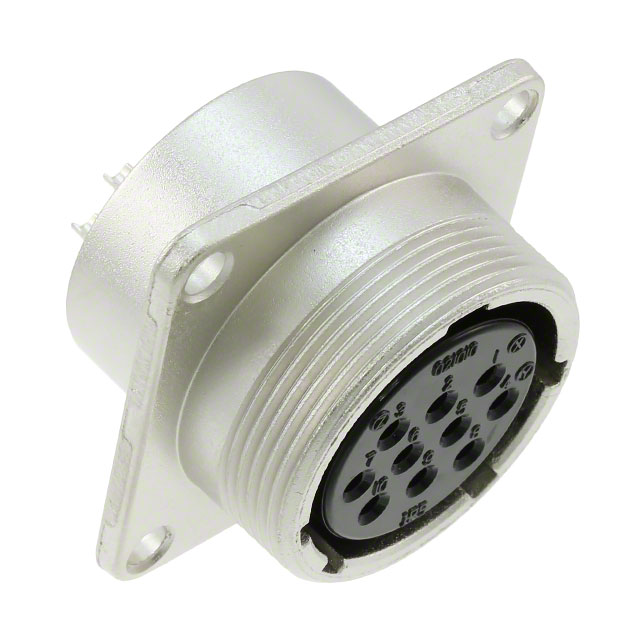

 Hirose Electric Co Ltd | Silver | 10 A | Keyed | Aluminum Alloy | Panel Mount | Metal | 0.941 in | 23.9 mm | Silver | Phenol Formaldehyde (PF) | UL94 V-0 | Receptacle Female Sockets | 10 | Copper Alloy | 78.7 µin | 2 µm | 250 VAC 350 VDC | Flange | Threaded | 85 °C | -25 °C | 21 | Unshielded | Nickel |

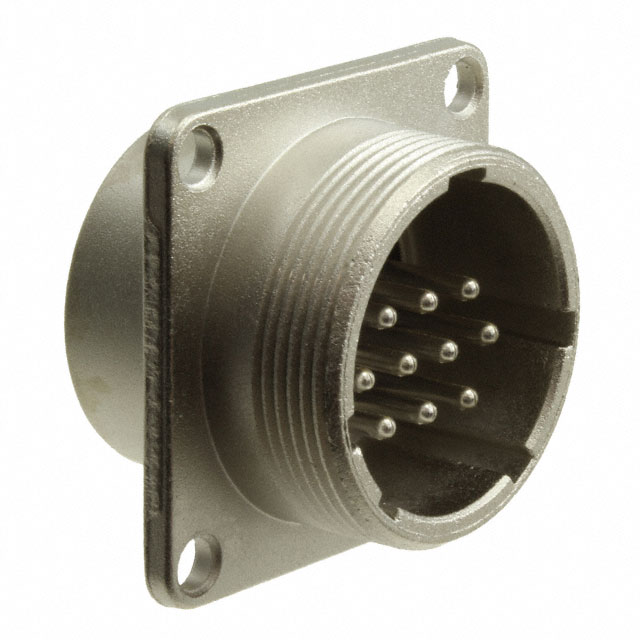

 Hirose Electric Co Ltd | Silver | 10 A | Keyed | Aluminum Alloy | Panel Mount | Metal | 0.941 in | 23.9 mm | Silver | Phenol Formaldehyde (PF) | UL94 V-0 | Receptacle Male Pins | 10 | Copper Alloy | 250 VAC 350 VDC | Flange | Threaded | 85 °C | -25 °C | 21 | Unshielded | Nickel | ||
 Hirose Electric Co Ltd | Silver | 5 A | Keyed | Aluminum Alloy | Panel Mount | Metal | 0.941 in | 23.9 mm | Silver | Phenol Formaldehyde (PF) | UL94 V-0 | Receptacle Female Sockets | 16 | Copper Alloy | 250 VAC 350 VDC | Flange | Threaded | 85 °C | -25 °C | 21 | Unshielded | Nickel |
