AD9265 Series
Manufacturer: Analog Devices
Beta
⌘K
16-BIT, 125 MSPS/105 MSPS/80 MSPS, 1.8 V ANALOG-TO-DIGITAL CONVERTER
| Part | Package / Case | Number of Bits | Configuration | Number of Inputs | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Supplier Device Package | Architecture | Operating Temperature [Max] | Operating Temperature [Min] | Number of A/D Converters | Sampling Rate (Per Second) | Reference Type | Mounting Type | Data Interface | Ratio - S/H:ADC | Input Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Supplied Contents | Utilized IC / Part | Input Range | Power (Typ) @ Conditions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 48-VFQFN Exposed Pad CSP | 16 | S/H-ADC | 1 | 1.7 V | 1.9 V | 48-LFCSP-VQ (7x7) | Pipelined | 85 °C | -40 °C | 1 | 125 M | External Internal | Surface Mount | LVDS - Parallel | 1:1 | Differential | 1.9 V | 1.7 V | ||||
Analog Devices | 48-VFQFN Exposed Pad CSP | 16 | S/H-ADC | 1 | 1.7 V | 1.9 V | 48-LFCSP-VQ (7x7) | Pipelined | 85 °C | -40 °C | 1 | 125 M | External Internal | Surface Mount | LVDS - Parallel | 1:1 | Differential | 1.9 V | 1.7 V | ||||
Analog Devices | 16 | 1 | 105 M | SPI | Board(s) | AD9265 | 1.8 Vpp | ||||||||||||||||

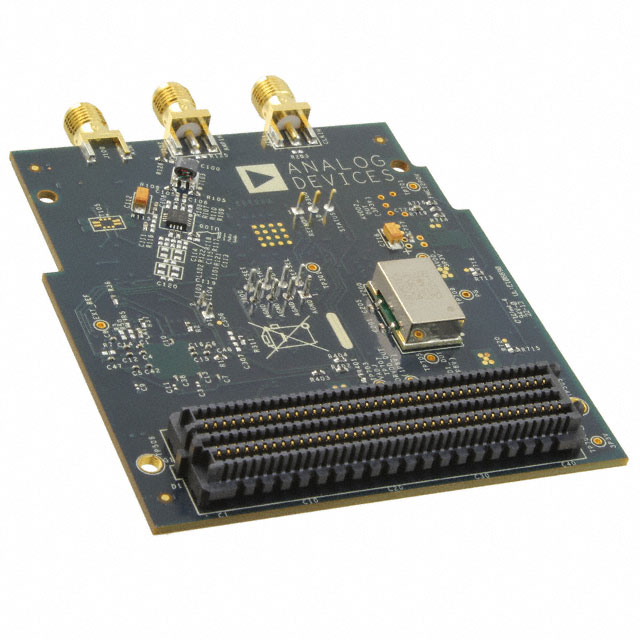

 Analog Devices | 16 | 1 | 125 M | SPI | Board(s) | AD9265 | 1.8 Vpp | 373 mW |
