DF20F Series

Catalog

CONN HEADER SMD R/A 10POS 1MM

Part	Contact Shape	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Shrouding	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Contact Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Termination	Number of Rows [custom]	Features	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Style	Connector Type	Contact Material	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Current Rating (Amps)	Mated Stacking Heights	Insulation Height [z]	Contact Termination	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Pin or Socket	Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)
Hirose Electric Co Ltd DF20F-10DP-1H(50)	Rectangular Square	Flash	1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Right Angle Surface Mount	Gold	Male Pin	100 V	8 µin	0.203 µm	Natural	0.217 in	5.51 mm	Gold	Solder	2	Solder Retention	Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Brass	10
Hirose Electric Co Ltd DF20F-40DP-1H(90)	Rectangular Square		1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Right Angle Surface Mount	Gold	Male Pin	100 VAC	8 µin	0.203 µm	Natural	0.217 in	5.5 mm 5.51 mm	Gold	Solder	2	Solder Retention	Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	40	0.015 µm	0.59 µin	0.217 in	Varies by Wire Gauge

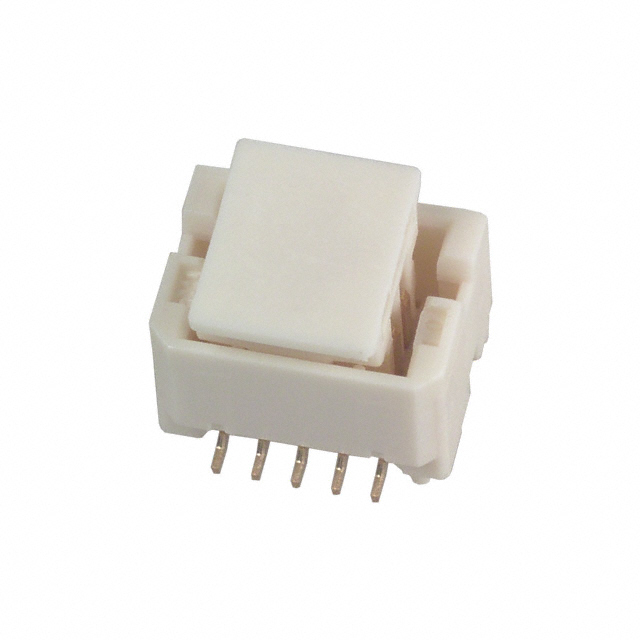

Hirose Electric Co Ltd DF20F-10DP-1V(59)	Rectangular Square		1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Surface Mount	Gold	Male Pin	100 V			Natural				Solder	2		Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	10			0.181 in		5.8 mm	4.6 mm

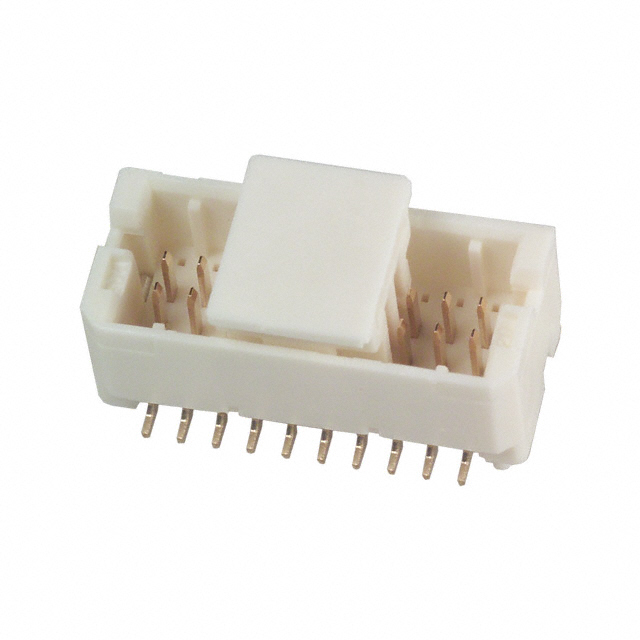

Hirose Electric Co Ltd DF20F-20DP-1V(59)	Rectangular Square		1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Surface Mount	Gold	Male Pin	100 V			Natural				Solder	2		Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	20			0.181 in		5.8 mm	4.6 mm
Hirose Electric Co Ltd DF20F-3032SCFA(41)																																					Crimp	32 AWG	30 AWG	Gold	Socket

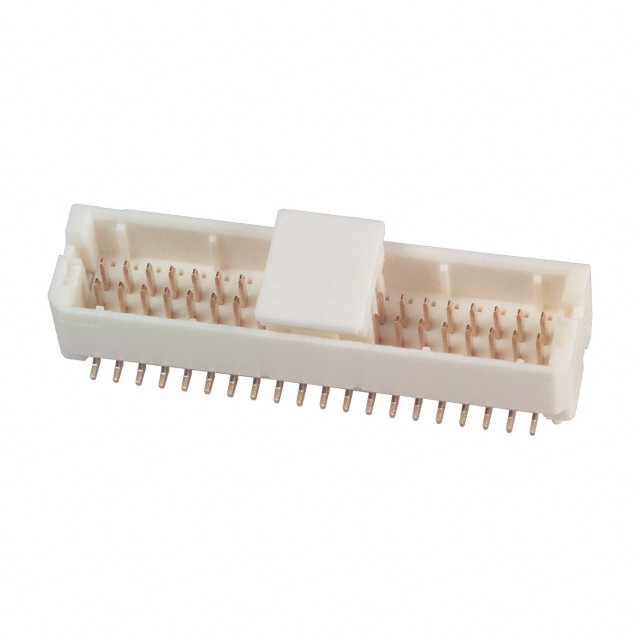

Hirose Electric Co Ltd DF20F-40DP-1V(56)	Rectangular Square	Flash	1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Surface Mount	Gold	Male Pin	100 V	8 µin	0.203 µm	Natural			Gold	Solder	2	Pick and Place Solder Retention	Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	40			0.181 in		5.8 mm	4.6 mm
Hirose Electric Co Ltd DF20F-3032SCFA(06)																																					Crimp	32 AWG	30 AWG	Gold	Socket	Stamped
Hirose Electric Co Ltd DF20F-20DP-1H(59)	Rectangular Square		1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Right Angle Surface Mount		Male Pin	100 V			Natural	0.217 in	5.51 mm	Tin	Solder	2	Solder Retention	Push-Pull	0.039 in	1 mm	Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	20													39.4 µin	1 µm
Hirose Electric Co Ltd DF20F-2830SCFA(06)																																					Crimp	30 AWG	27.5 AWG	Gold	Socket	Stamped
Hirose Electric Co Ltd DF20F-40DP-1H(91)	Rectangular		1 mm	0.039 in	85 °C	-35 °C	All	Shrouded - 4 Wall	UL94 V-0	Right Angle Surface Mount		Male Pin	100 VAC			Beige	0.217 in	5.51 mm		Solder	2	Solder Retention	Push-Pull			Nylon Polyamide (PA)	Board to Cable/Wire	Header	Phosphor Bronze	40															1.15 mm	0.045 in	1 A
