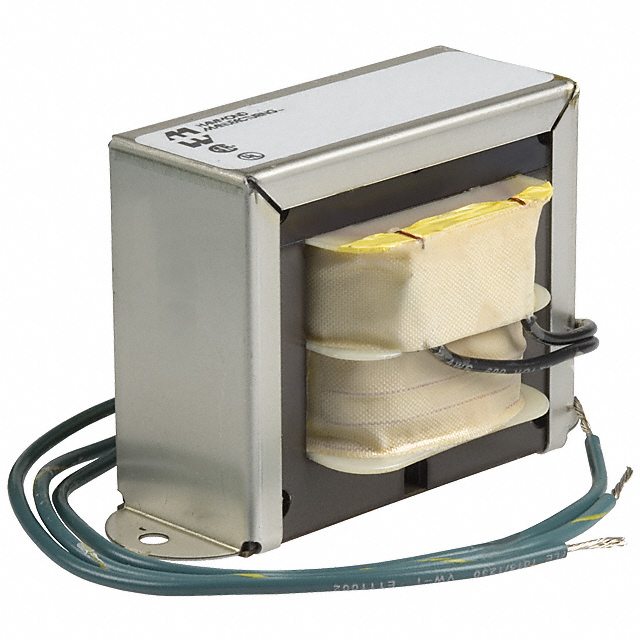

166 Series

Catalog

POWER TRANSFORMERS POWER TRANSFORMER, LOW VOLTAGE, 115V 60 HZ., 0.63VA, 2.5 C.T., 0.25A

Part	Voltage - Secondary (Full Load)	Termination Style	Primary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Secondary Winding(s)	Current - Output (Max) [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Weight	Weight	Voltage - Primary	Voltage - Isolation	Power - Max [Max]	Type	Height - Seated (Max) [Max]	Weight [custom]	Weight [custom]	Current - Output (Max)
Hammond Manufacturing 166F2	2.5 V	Wire Leads	Single	52.32 mm	1.25 in	Single	250 mA	Chassis Mount	30.23 mm	136.08 g	0.3 lb	115 V	2000 Vrms	0.63 VA	Laminated Core
Hammond Manufacturing 166F44	44 V	Wire Leads	Single	71.37 mm	41.4 mm	Single	250 mA	Chassis Mount	42.93 mm	317.51 g	0.7 lb	115 V	2000 Vrms	11 VA	Laminated Core
Hammond Manufacturing 166F50	50 V	Wire Leads	Single	3.25 "	41.4 mm	Single	0.3 A	Chassis Mount		408.23 g	0.9 lb	115 V	2000 Vrms	15 VA	Laminated Core	50.8 mm
Hammond Manufacturing 166K12B	12.6 V	Wire Leads	Single	3.25 "	2 in	Single	1.5 A	Chassis Mount					2000 Vrms	18.9 VA	Laminated Core	50.8 mm	680.4 g	1.5 lbs
Hammond Manufacturing 166P11	11 V	Wire Leads	Single	93.73 mm	54.1 mm	Single		Chassis Mount	54.1 mm	907.2 g	2 lbs	115 V	2000 Vrms	55 VA	Laminated Core				5 A
Hammond Manufacturing 166C50	50 V	Wire Leads	Single	60.45 mm	35.05 mm	Single	75 mA	Chassis Mount		181.44 g	0.4 lb	115 V	2000 Vrms	3.75 VA	Laminated Core	35.05 mm
Hammond Manufacturing 166G14	14 V	Wire Leads	Single	71.37 mm	38.1 mm	Single	500 mA	Chassis Mount	42.93 mm	317.51 g	0.7 lb	115 V	2000 Vrms		Laminated Core

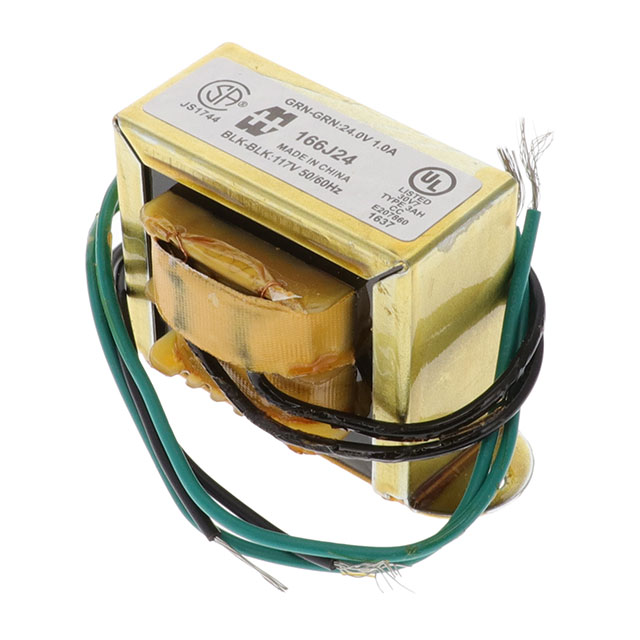

Hammond Manufacturing 166J24	24 V	Wire Leads	Single	3.25 "	2 in	Single	1 A	Chassis Mount		635 g	1.4 lbs		2000 Vrms	24 VA	Laminated Core	50.8 mm
Hammond Manufacturing 166L16	16 V	Wire Leads	Single	3.25 "	2 in	Single	2.2 A	Chassis Mount		635 g	1.4 lbs	115 V	2000 Vrms	35.2 VA	Laminated Core	50.8 mm
Hammond Manufacturing 166S6	6.3 V	Wire Leads	Single	102.36 mm	2.25 in	Single	10 A	Chassis Mount	66.8 mm			115 V	2000 Vrms	63 VA	Laminated Core		1.1 kg	2.5 lbs
