ECH8602 Series

Catalog

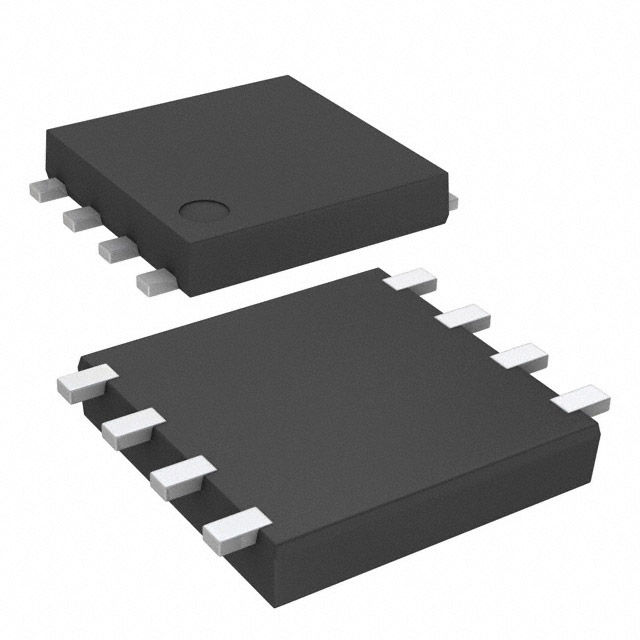

MOSFET 2N-CH 30V 6A 8ECH

Part	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Technology	Rds On (Max) @ Id, Vgs [Max]	Mounting Type	FET Feature	Operating Temperature	Drain to Source Voltage (Vdss)	Supplier Device Package	Configuration
ON Semiconductor ECH8602M-TL-H	1.5 W	7.5 nC	6 A	MOSFET (Metal Oxide)	30 mOhm	Surface Mount	Logic Level Gate	150 °C	30 V	8-ECH	2 N-Channel (Dual)
