DC1369 Series
Manufacturer: Analog Devices
Beta
⌘K

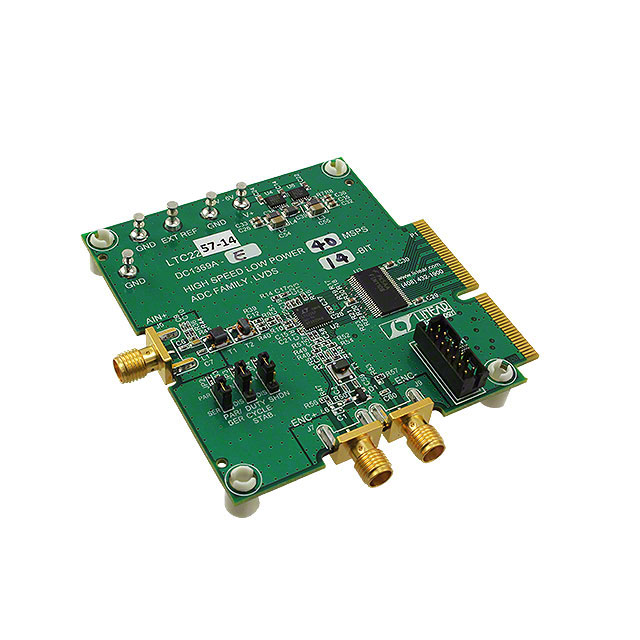

LTC2257-14, 14-BIT 40MSPS ADC, LVDS OUTPUTS, 5-170MHZ, REQUIRES DC890, LVDS_XFMR AND DC1075
| Part | Data Interface | Number of A/D Converters | Power (Typ) @ Conditions | Contents | Utilized IC / Part | Number of Bits | Input Range [Min] | Input Range [Max] | Sampling Rate (Per Second) | Supplied Contents | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Parallel | 1 | 129.4 mW | Board(s) | LTC2257-14 | 14 | 1 Vpp | 2 Vpp | 40M | ||
 Analog Devices | Parallel | 1 | 231 mW | LTC2262-14 | 14 | 1 Vpp | 2 Vpp | Board(s) | 150 M | ||

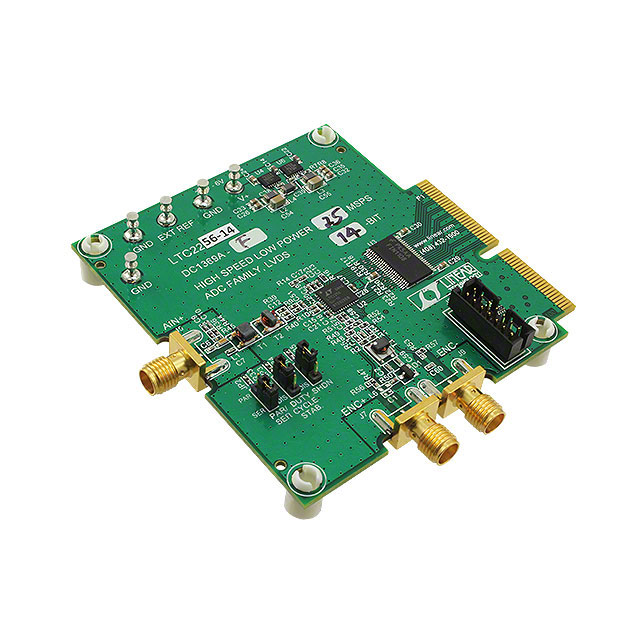

 Analog Devices | Parallel | 1 | 115.2 mW | Board(s) | LTC2256-14 | 14 | 1 Vpp | 2 Vpp | Board(s) | 25 M |
