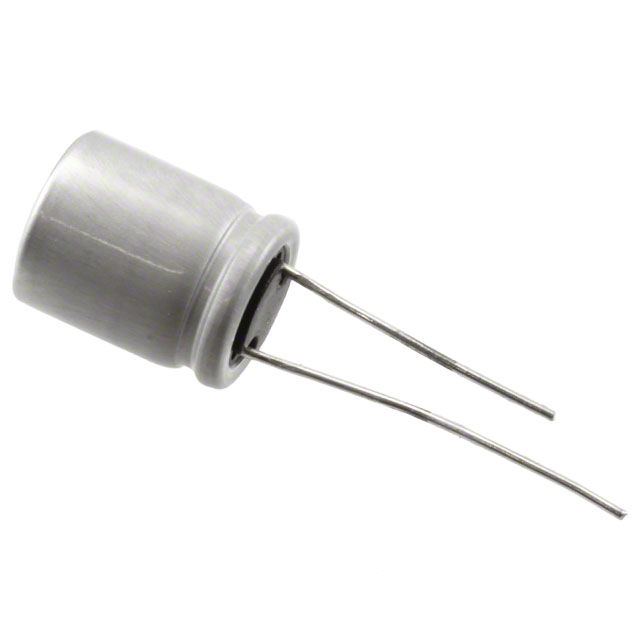

PLF Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 680UF 2.5V 20% 105O AEC-Q200

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Tolerance	Applications	Lead Spacing	Lead Spacing	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Package / Case	ESR (Equivalent Series Resistance)	Voltage - Rated	Ratings	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon PLF0E681MCO6TD	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	0.138 in	3.5 mm	Through Hole	4.8 A	9 mm	0.354 in	Polymer	-55 C	105 ░C	680 µF	Can Radial	7 mOhms	2.5 V
Nichicon PLF0J221MDL4TD	0.248 "	6.3 mm	2000 Hrs	20 %	General Purpose	0.098 in	2.5 mm	Through Hole	3.2 A	10.5 mm	0.413 "	Polymer	-55 C	105 ░C	220 µF	Can Radial	20 mOhms	6.3 VDC
Nichicon PLF1D470MCL2	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	0.138 in	3.5 mm	Through Hole	2 A	7 mm	0.276 in	Polymer	-55 C	105 ░C	47 µF	Can Radial	45 mOhm	20 V	AEC-Q200
Nichicon PLF0J331MDL4	0.248 "	6.3 mm	2000 Hrs	20 %	General Purpose	0.098 in	2.5 mm	Through Hole	3.3 A	10.5 mm	0.413 "	Polymer	-55 C	105 ░C	330 µF	Can Radial	24 mOhms	6.3 VDC	AEC-Q200
Nichicon PLF0J471MCO6TD	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	0.138 in	3.5 mm	Through Hole	5.2 A	9 mm	0.354 in	Polymer	-55 C	105 ░C	470 µF	Can Radial	7 mOhms	6.3 VDC
Nichicon PLF0G271MDL4TD	0.248 "	6.3 mm	2000 Hrs	20 %	General Purpose	0.098 in	2.5 mm	Through Hole	3.2 A	10.5 mm	0.413 "	Polymer	-55 C	105 ░C	270 µF	Can Radial	20 mOhms	4 V
Nichicon PLF0J221MDL4	0.248 "	6.3 mm	2000 Hrs	20 %	General Purpose	0.098 in	2.5 mm	Through Hole	3.2 A	10.5 mm	0.413 "	Polymer	-55 C	105 ░C	220 µF	Can Radial	20 mOhms	6.3 VDC	AEC-Q200
Nichicon PLF1E6R8MCL2TP	0.248 "	6.3 mm	2000 Hrs	20 %	General Purpose	0.098 in	2.5 mm	Through Hole	1.2 A		0.236 "	Polymer	-55 C	105 ░C	6.8 µF	Can Radial	80 mOhm	25 VDC		6 mm
Nichicon PLF1E560MDO2	0.394 in	10 mm	2000 Hrs	20 %	General Purpose	0.197 "	5 mm	Through Hole	3.8 A			Polymer	-55 C	105 ░C	56 µF	Can Radial	28 mOhm	25 VDC	AEC-Q200		0.512 "	13 mm
Nichicon PLF0G561MCO6TD	0.315 in	8 mm	2000 Hrs	20 %	General Purpose	0.138 in	3.5 mm	Through Hole	5.2 A	9 mm	0.354 in	Polymer	-55 C	105 ░C	560 µF	Can Radial	7 mOhms	4 V
