RNE Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS
| Part | Package / Case | Capacitance | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Tolerance | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Ripple Current @ High Frequency | Voltage - Rated | Type | Ripple Current @ Low Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

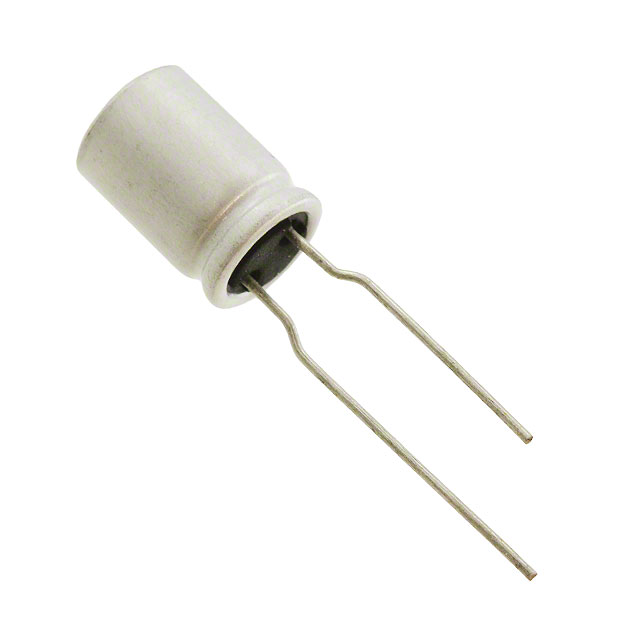

 Nichicon | Can Radial | 470 µF | 0.138 in | 3.5 mm | -55 C | 105 ░C | General Purpose | 20 % | 5000 Hrs | 0.315 in | 8 mm | Through Hole | 5.4 A | 16 V | Polymer | 540 mA | 0.512 " | 13 mm | 10 mOhm |
 Nichicon | |||||||||||||||||||
Nichicon |
